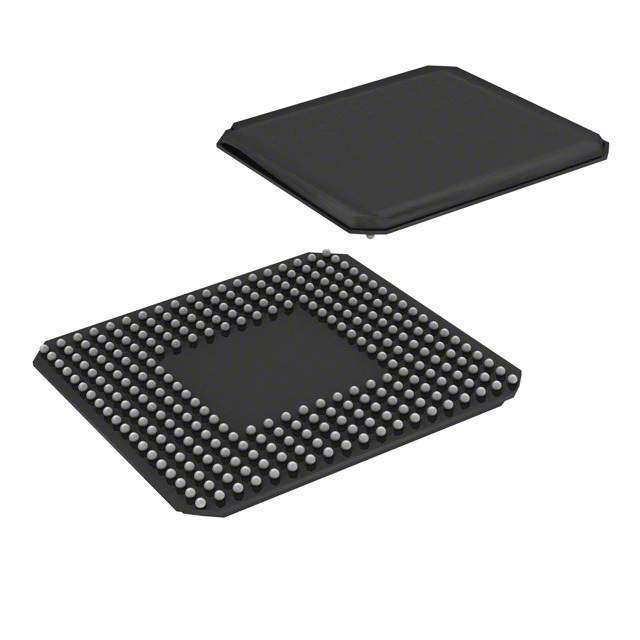

XC95288XL-6CSG280C
RoHS
/
Package TFBGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Active Surface Mount COMMERCIAL complex programmable logic device 70C 3.3V 6ns 1.2mm
PDF
/
Inventory: 5057
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.2mm
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 288
Output Function MACROCELL
Speed Grade 6
Number of Logic Blocks (LABs) 16
Number of Gates 6400
Frequency (Max) 208.3MHz
Propagation Delay 6 ns
Memory Type FLASH
Number of I/O 192
Temperature Grade COMMERCIAL
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Pin Count 280
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Programmable Logic Devices
HTS Code 8542.39.00.01
Additional Feature YES
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
ECCN Code EAR99
Number of Terminations 280
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Published 1996
Physical
Number of Pins 280
Package / Case TFBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
