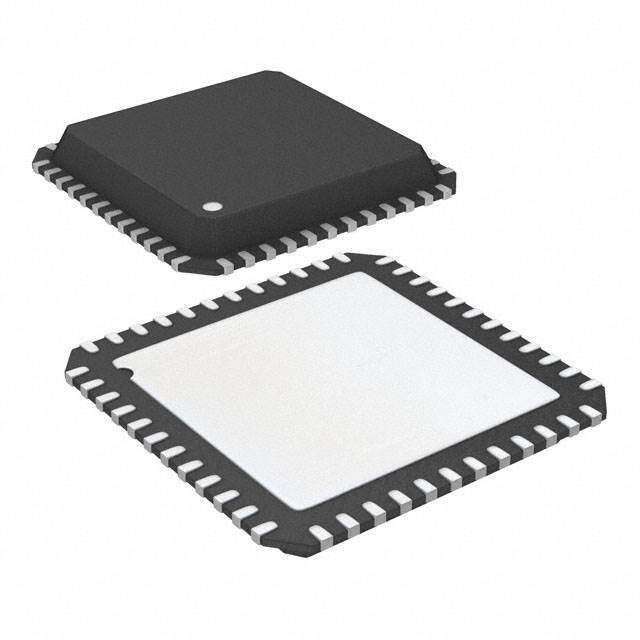

XC2C64A-7QFG48C
RoHS
RoHS compliant
RoHS compliantPackage 48-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
REAL DIGITAL DESIGN TECHNOLOGY 48-VFQFN Exposed Pad 2001 XC2C64A complex programmable logic device 159MHz 1mm 6.7ns 1.7V~1.9V
PDF
/
Buying Options
Total Price: USD $7.52
Unit Price: USD $7.51735
≥1 USD $7.51735
≥10 USD $6.16835
≥100 USD $5.9755
≥500 USD $5.78265
≥1000 USD $5.59075
Inventory: 19205
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Number of Pins 48
Technical
Operating Temperature 0°C~70°C TA
Packaging Tray
Published 2001
Series CoolRunner II
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Additional Feature REAL DIGITAL DESIGN TECHNOLOGY
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number XC2C64A
Pin Count 48
Qualification Status Not Qualified
Operating Supply Voltage 1.8V
Supply Voltage-Max (Vsup) 1.9V
Programmable Type In System Programmable
Number of I/O 37
Memory Type ROMless
Propagation Delay 7.5 ns
Number of Logic Elements/Cells 4
Number of Gates 1500
Max Frequency 159MHz
Speed Grade 7
Output Function MACROCELL
Number of Macro Cells 64
JTAG BST YES
Voltage Supply - Internal 1.7V~1.9V
Delay Time tpd(1) Max 6.7ns
Dimensions
Height Seated (Max) 1mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
