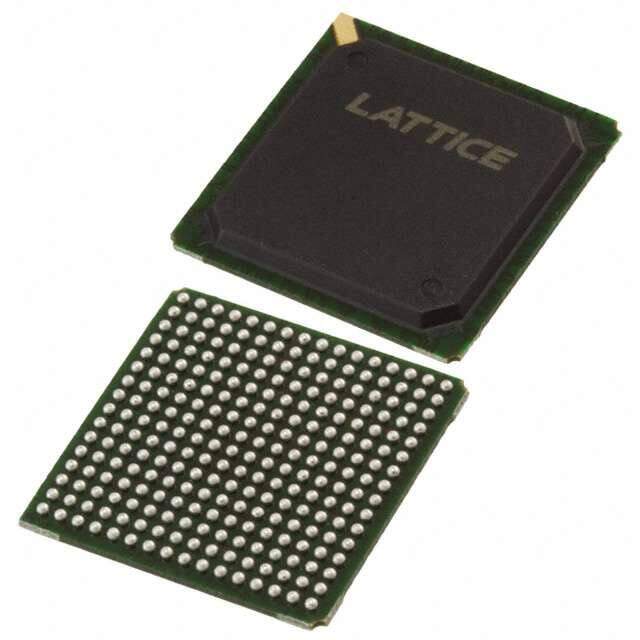

LC4256V-5FN256BC
RoHS
RoHS compliant
RoHS compliantPackage 256-BGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
256-BGA ispMACH? 4000V TIN SILVER COPPER e1 complex programmable logic device 156MHz 17mm 5ns 3V~3.6V
PDF
/
Inventory: 5212
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 17mm
Length 17mm
Height Seated (Max) 2.1mm
Technical
Number of Logic Elements/Blocks 16
Delay Time tpd(1) Max 5ns
Voltage Supply - Internal 3V~3.6V
Number of Dedicated Inputs 4
Number of Macro Cells 256
Output Function MACROCELL
Propagation Delay 5 ns
Clock Frequency 156MHz
Number of I/O 160
Programmable Type In System Programmable
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status COMMERCIAL
Pin Count 256
Time@Peak Reflow Temperature-Max (s) 40
Reach Compliance Code unknown
Terminal Pitch 1mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 250
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish TIN SILVER COPPER
Number of Terminations 256
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Series ispMACH? 4000V
Packaging Tray
Operating Temperature 0°C~90°C TJ
Physical
Surface Mount YES
Package / Case 256-BGA
Mounting Type Surface Mount
