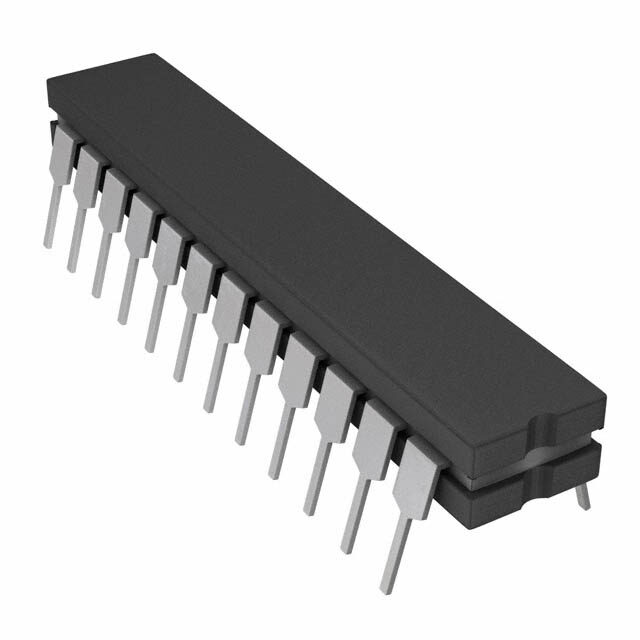

ATF750C-10GM/883
RoHS
RoHS compliant
RoHS compliantPackage 24-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
NO 24-CDIP (0.300 7.62mm) 1997 ATF750 complex programmable logic device 90MHz 32mm 10ns 5V
PDF
/
Inventory: 5179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case 24-CDIP (0.300, 7.62mm)
Number of Pins 24
Technical
Operating Temperature -55°C~125°C TA
Packaging Tube
Published 1997
Series ATF750C(L)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
Additional Feature NO
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position DUAL
Supply Voltage 5V
Terminal Pitch 2.54mm
Frequency 90MHz
Base Part Number ATF750
Qualification Status Not Qualified
Operating Supply Voltage 5V
Power Supplies 5V
Programmable Type In System Programmable (min 1K program/erase cycles)
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Number of I/O 10
Memory Type EEPROM
Propagation Delay 10 ns
Turn On Delay Time 10 ns
Number of Gates 750
Screening Level MIL-STD-883
Output Function MACROCELL
Number of Macro Cells 10
JTAG BST NO
Number of Dedicated Inputs 11
Voltage Supply - Internal 4.5V~5.5V
Dimensions
Height Seated (Max) 5.08mm
Length 32mm
Width 7.62mm
Compliance
RoHS Status ROHS3 Compliant
