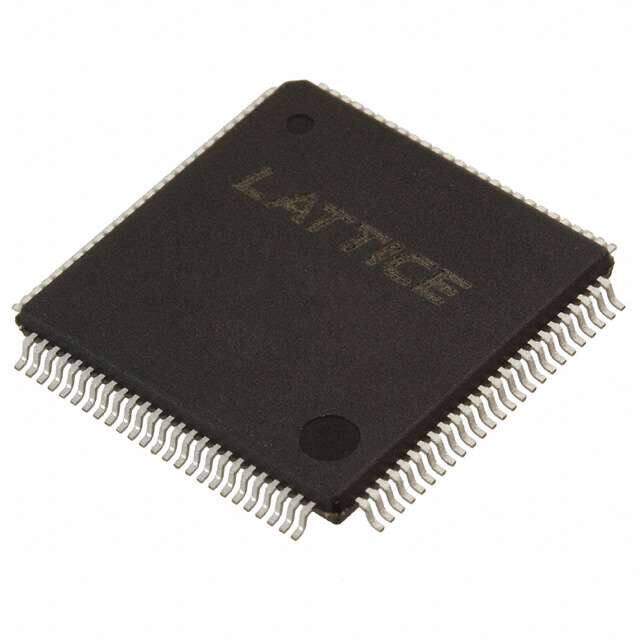

ISPLSI 1032E-100LT
RoHS
/
Package 100-LQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
100-LQFP 2000 ISPLSI 1032 ispLSI? 1000E complex programmable logic device 71MHz 14mm 10ns 5V
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.275726
≥1 USD $2.275726
≥10 USD $2.146915
≥100 USD $2.025389
≥500 USD $1.910746
≥1000 USD $1.802593
Inventory: 1461
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 100-LQFP
Surface Mount YES
Technical
Operating Temperature 0°C~70°C TA
Packaging Tray
Published 2000
Series ispLSI? 1000E
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code 8542.39.00.01
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 240
Supply Voltage 5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number ISPLSI 1032
Pin Count 100
JESD-30 Code S-PQFP-G100
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.25V
Power Supplies 5V
Supply Voltage-Min (Vsup) 4.75V
Programmable Type In System Programmable
Number of I/O 64
Clock Frequency 71MHz
Propagation Delay 12.5 ns
Number of Gates 6000
Output Function MACROCELL
Number of Macro Cells 128
JTAG BST NO
Number of Dedicated Inputs 2
Voltage Supply - Internal 4.75V~5.25V
Delay Time tpd(1) Max 10ns
Number of Logic Elements/Blocks 32
Dimensions
Height Seated (Max) 1.6mm
Length 14mm
Width 14mm
Compliance
RoHS Status Non-RoHS Compliant
