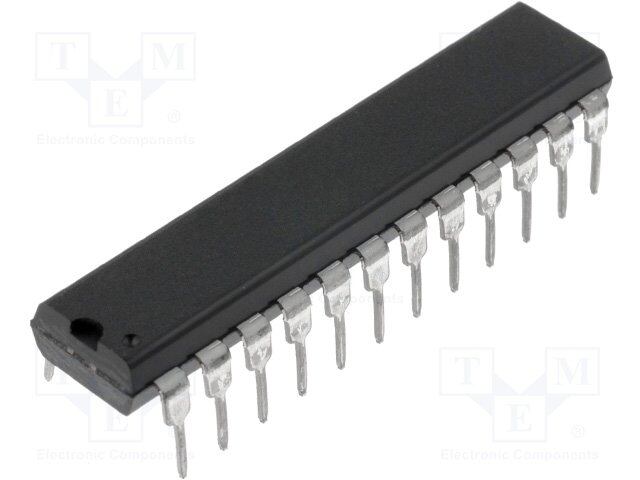

GAL20V8B-15LPN image
Favorite
GAL20V8B-15LPN image
Favorite
RoHS
/
Package 24-DIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description 24-DIP (0.300 7.62mm) 2000 GAL20V8 GAL?20V8 complex programmable logic device 62.5MHz 90mA 31.75mm 15ns
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
Inventory: 1233
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 7.62mm
Length 31.75mm
Height Seated (Max) 5.334mm

Technical

Number of Product Terms 64
Voltage Supply - Internal 4.75V~5.25V
Number of Dedicated Inputs 12
Number of Macro Cells 8
Output Function MACROCELL
Architecture PAL-TYPE
Propagation Delay 15 ns
Nominal Supply Current 90mA
Number of I/O 8
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Programmable Type EE PLD
Power Supplies 5V
Qualification Status Not Qualified
Number of Outputs 8
Pin Count 24
Base Part Number GAL20V8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 62.5MHz
Reach Compliance Code unknown
Terminal Pitch 2.54mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Technology CMOS
Subcategory Programmable Logic Devices
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series GAL?20V8
Published 2000
Packaging Tube
Operating Temperature 0°C~75°C TA

Physical

Number of Pins 24
Package / Case 24-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
