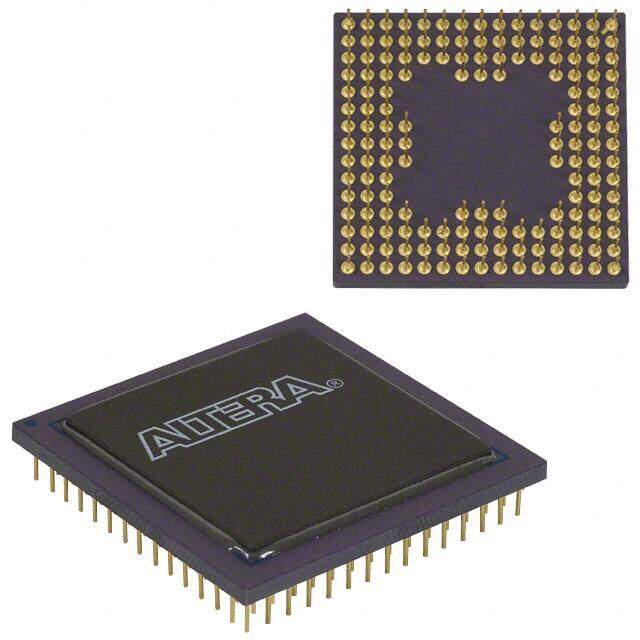

EPM7192EGC160-20
RoHS
/
Package 160-BPGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V 160-BPGA EPM7192 MAX? 7000 complex programmable logic device 83.3MHz 39.624mm 20ns 3.3/55V
PDF
/
Buying Options
Total Price: USD $141.07
Unit Price: USD $141.07025
≥1 USD $141.07025
≥10 USD $136.36775
≥100 USD $122.2612
Inventory: 1102
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 160-BPGA
Surface Mount NO
Technical
Operating Temperature 0°C~70°C TA
Packaging Tray
Series MAX? 7000
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 160
ECCN Code EAR99
Terminal Finish TIN LEAD
Additional Feature CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
HTS Code 8542.39.00.01
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position PERPENDICULAR
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) 220
Supply Voltage 5V
Terminal Pitch 2.54mm
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number EPM7192
JESD-30 Code S-CPGA-P160
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.25V
Power Supplies 3.3/55V
Supply Voltage-Min (Vsup) 4.75V
Programmable Type EE PLD
Number of I/O 124
Clock Frequency 83.3MHz
Propagation Delay 20 ns
Number of Gates 3750
Output Function MACROCELL
Number of Macro Cells 192
JTAG BST NO
Voltage Supply - Internal 4.75V~5.25V
Delay Time tpd(1) Max 20ns
Number of Logic Elements/Blocks 12
Dimensions
Height Seated (Max) 5.34mm
Length 39.624mm
Width 39.624mm
Compliance
RoHS Status Non-RoHS Compliant
