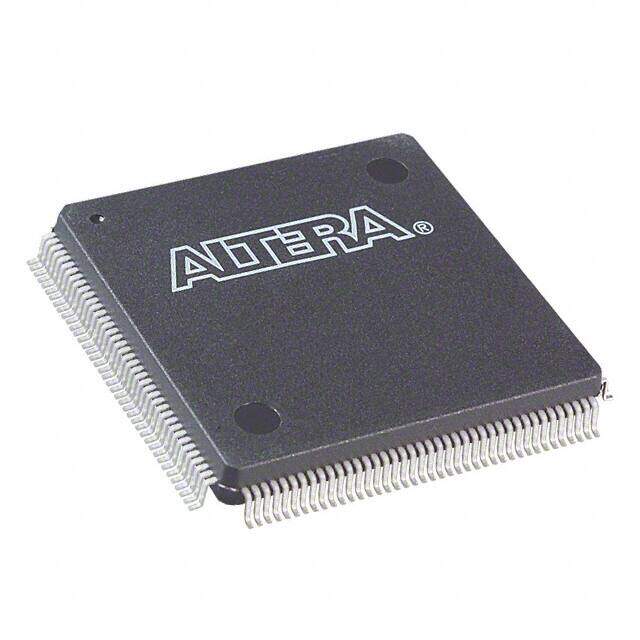

EPM7160SQC160-10
RoHS
/
Package 160-BQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V 160-BQFP EPM7160 MAX? 7000S complex programmable logic device 125MHz 28mm 10ns 3.3/55V
PDF
/
Buying Options
Total Price: USD $63.37
Unit Price: USD $63.370315
≥1 USD $63.370315
≥10 USD $59.783317
≥100 USD $56.399353
≥500 USD $53.206935
≥1000 USD $50.195226
Inventory: 1183
Minimum: 1
-
+
Technical Details
Technical
JTAG BST YES
Voltage Supply - Internal 4.75V~5.25V
Delay Time tpd(1) Max 10ns
Number of Logic Elements/Blocks 10
Number of Macro Cells 160
Output Function MACROCELL
Number of Gates 3200
Clock Frequency 125MHz
Number of I/O 104
Programmable Type In System Programmable
Supply Voltage-Min (Vsup) 4.75V
Power Supplies 3.3/55V
Supply Voltage-Max (Vsup) 5.25V
Qualification Status Not Qualified
Base Part Number EPM7160
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Programmable Logic Devices
HTS Code 8542.39.00.01
Additional Feature CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 160
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e0
Series MAX? 7000S
Packaging Tray
Operating Temperature 0°C~70°C TA
Dimensions
Height Seated (Max) 4.07mm
Length 28mm
Width 28mm
Compliance
RoHS Status Non-RoHS Compliant
Physical
Surface Mount YES
Package / Case 160-BQFP
Mounting Type Surface Mount
