5M40ZE64C4N
RoHS
RoHS compliant

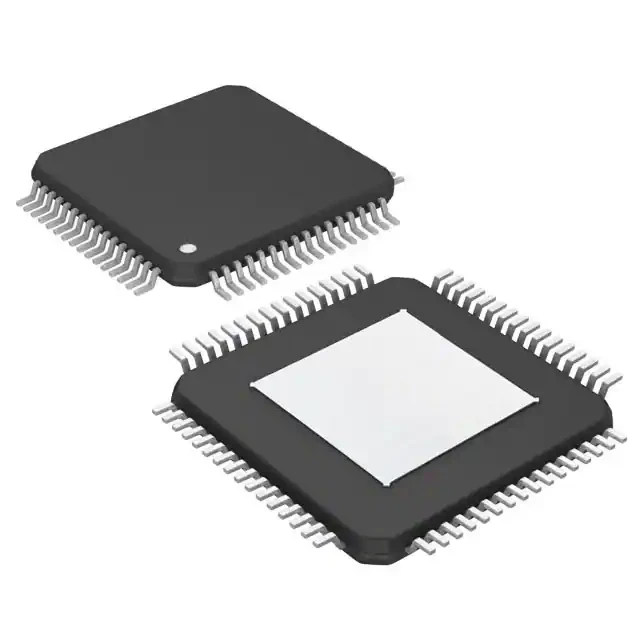

RoHS compliantPackage 64-TQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
64-TQFP Exposed Pad 2003 5M40Z MAX? V complex programmable logic device 184.1MHz 7mm 7.5ns 1.71V~1.89V
PDF
/
Buying Options
Total Price: USD $157.37
Unit Price: USD $157.37142
≥1 USD $157.37142
≥10 USD $148.4636
≥100 USD $140.06
≥500 USD $132.13208
≥1000 USD $124.6529
≥3000 USD $117.59708
Inventory: 5673
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 64-TQFP Exposed Pad
Surface Mount YES
Technical
Operating Temperature 0°C~85°C TJ
Packaging Tray
Published 2003
Series MAX? V
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
ECCN Code EAR99
Terminal Finish MATTE TIN
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number 5M40Z
JESD-30 Code S-PQFP-G64
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 1.89V
Supply Voltage-Min (Vsup) 1.71V
Programmable Type In System Programmable
Number of I/O 54
Clock Frequency 184.1MHz
Propagation Delay 7.9 ns
Output Function MACROCELL
Number of Macro Cells 32
Voltage Supply - Internal 1.71V~1.89V
Delay Time tpd(1) Max 7.5ns
Number of Logic Elements/Blocks 40
Dimensions
Height Seated (Max) 1.2mm
Length 7mm
Width 7mm
Compliance
RoHS Status RoHS Compliant
