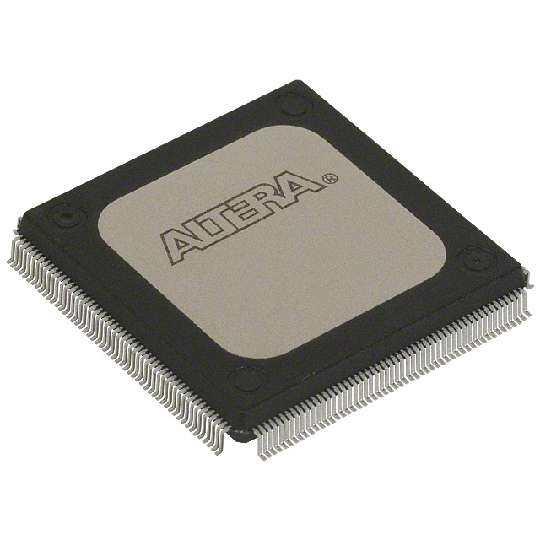

EPM9560RC208-15
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5.25V 16.6ns 28mm
PDF
/
Buying Options
Total Price: USD $17.43
Unit Price: USD $17.43345
≥1 USD $17.43345
≥10 USD $14.30415
≥100 USD $13.85765
≥500 USD $13.4102
≥1000 USD $12.9637
Inventory: 1168
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.1mm
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 560
Output Function MACROCELL
Number of Logic Blocks (LABs) 35
Number of Gates 12000
Programmable Logic Type EE PLD
Propagation Delay 16.6 ns
Clock Frequency 117.6MHz
Memory Type EEPROM
Number of I/O 153
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 208
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Programmable Logic Devices
HTS Code 8542.39.00.01
Additional Feature 772 FLIP FLOPS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A001.A.7.A
Number of Terminations 208
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 1994
Physical
Number of Pins 208
Mount Surface Mount
