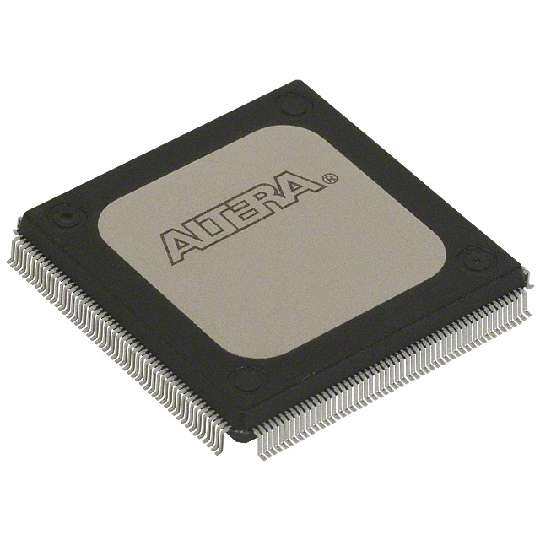

EPM9400RC208-20
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5V 3.3/55V 23.2ns
PDF
/
Buying Options
Total Price: USD $98.64
Unit Price: USD $98.6392
≥1 USD $98.6392
Inventory: 127
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Technical
Published 1994
JESD-609 Code e0
Pbfree Code no
Part Status Discontinued
Number of Terminations 208
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature 580 FLIP FLOPS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
HTS Code 8542.39.00.01
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 208
JESD-30 Code S-PQFP-G208
Qualification Status Not Qualified
Power Supplies 3.3/55V
Temperature Grade COMMERCIAL
Supply Voltage-Min (Vsup) 4.75V
Number of I/O 139
Clock Frequency 100MHz
Propagation Delay 23.2 ns
Programmable Logic Type EE PLD
Number of Gates 8000
Number of Logic Blocks (LABs) 25
Output Function MACROCELL
Number of Macro Cells 400
JTAG BST YES
In-System Programmable YES
Dimensions
Height Seated (Max) 4.1mm
Length 28mm
Width 28mm
Compliance
RoHS Status RoHS Compliant
