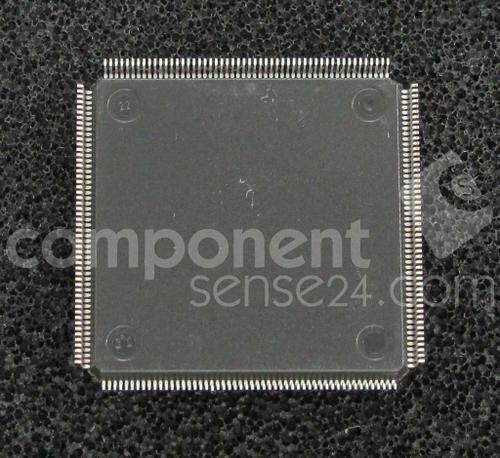

EPM9320RC208-20
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5.25V 23ns 28mm
PDF
/
Inventory: 8868
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Technology CMOS
Subcategory Programmable Logic Devices
HTS Code 8542.39.00.01
Additional Feature 484 FLIP FLOPS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 208
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 2012
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 320
Output Function MACROCELL
Number of Logic Blocks (LABs) 20
Number of Gates 6000
Programmable Logic Type EE PLD
Propagation Delay 23 ns
Clock Frequency 100MHz
Memory Type EEPROM
Number of I/O 132
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 208
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Physical
Number of Pins 208
Mount Surface Mount
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.1mm
