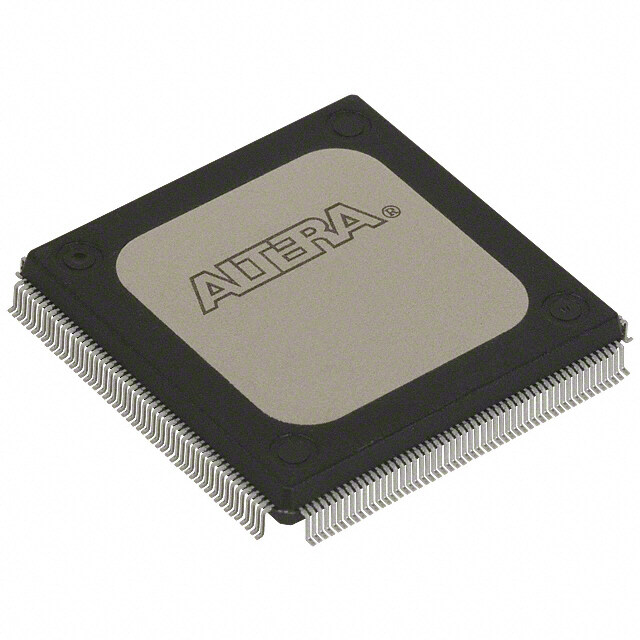

EPM9320ARC208-10N
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5.25V 10.8ns 28mm
PDF
/
Buying Options
Total Price: USD $3221.74
Unit Price: USD $3221.73975
≥1 USD $3221.73975
Inventory: 34
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Number of Pins 208
Technical
Published 1994
JESD-609 Code e2
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 208
ECCN Code EAR99
Terminal Finish Matte Tin/Copper (Sn/Cu)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Supply Voltage 5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 208
Qualification Status Not Qualified
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Number of I/O 132
Memory Type EEPROM
Clock Frequency 144.9MHz
Propagation Delay 10.8 ns
Programmable Logic Type EE PLD
Number of Gates 6000
Number of Logic Blocks (LABs) 20
Output Function MACROCELL
Number of Macro Cells 320
Dimensions
Height Seated (Max) 4.1mm
Length 28mm
Width 28mm
Compliance
RoHS Status RoHS Compliant
