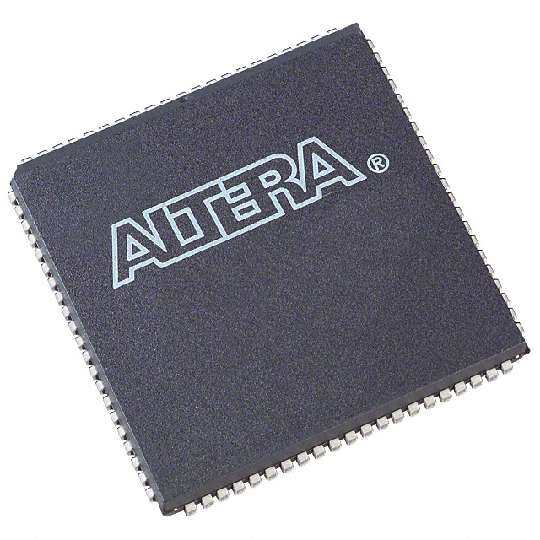

EPM9320ALC84-10N
RoHS
/
Package PLCC
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5.25V 10.8ns 29.31mm
PDF
/
Buying Options
Total Price: USD $641.37
Unit Price: USD $641.36875
≥1 USD $641.36875
Inventory: 302
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 29.31mm
Length 29.31mm
Height 3.81mm
Technical
Number of Macro Cells 320
Output Function MACROCELL
Number of Logic Blocks (LABs) 20
Number of Gates 6000
Programmable Logic Type EE PLD
Propagation Delay 10.8 ns
Clock Frequency 144.9MHz
Memory Type EEPROM
Number of I/O 60
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Qualification Status Not Qualified
Pin Count 84
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 245
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 84
Part Status Discontinued
JESD-609 Code e3
Physical
Number of Pins 84
Package / Case PLCC
Mount Surface Mount
