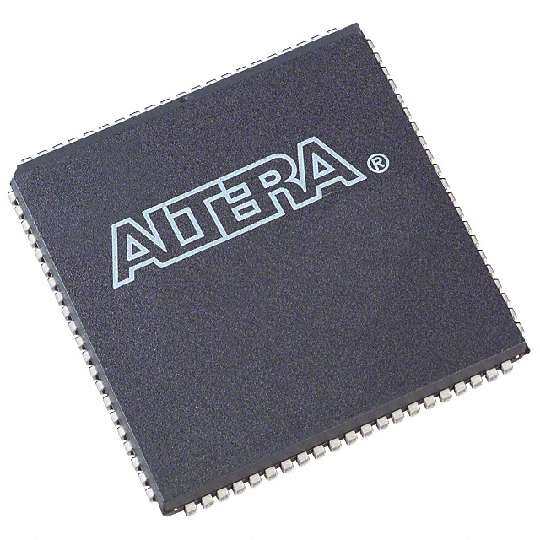

EPM9320ALC84-10
RoHS
/
Package PLCC
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5.25V 10.8ns 29.31mm
PDF
/
Buying Options
Total Price: USD $801.28
Unit Price: USD $801.28415
≥1 USD $801.28415
Inventory: 107
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case PLCC
Number of Pins 84
Technical
Published 1994
JESD-609 Code e0
Pbfree Code no
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 84
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form J BEND
Peak Reflow Temperature (Cel) 220
Supply Voltage 5V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 84
Qualification Status Not Qualified
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Number of I/O 60
Memory Type EEPROM
Clock Frequency 144.9MHz
Propagation Delay 10.8 ns
Programmable Logic Type EE PLD
Number of Gates 6000
Number of Logic Blocks (LABs) 20
Output Function MACROCELL
Number of Macro Cells 320
JTAG BST YES
In-System Programmable YES
Dimensions
Height 3.81mm
Length 29.31mm
Width 29.31mm
Compliance
RoHS Status RoHS Compliant
