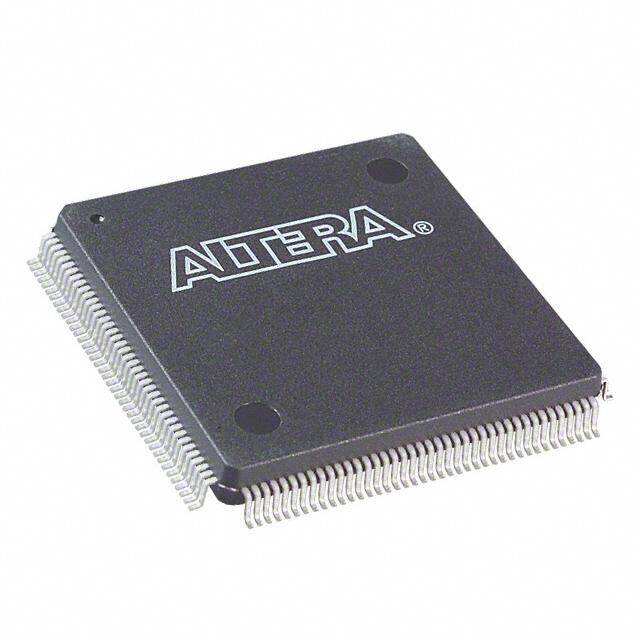

EPM7192SQC160-10F
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Surface Mount COMMERCIAL Not Qualified CPLD 70C 5V 3.3/55V 10ns
PDF
/
Buying Options
Total Price: USD $654.32
Unit Price: USD $654.320695
≥1 USD $654.320695
≥10 USD $617.283671
≥100 USD $582.34308
≥500 USD $549.380269
≥1000 USD $518.283277
Inventory: 7322
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case PQFP
Number of Pins 160
Technical
Packaging Bulk
Published 1998
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 160
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature YES
HTS Code 8542.39.00.01
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 5V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 160
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.25V
Power Supplies 3.3/55V
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 192
Output Function MACROCELL
Number of Logic Blocks (LABs) 12
Number of Gates 3750
Programmable Logic Type EE PLD
Propagation Delay 10 ns
Number of I/O 124
Supply Voltage-Min (Vsup) 4.75V
Temperature Grade COMMERCIAL
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.07mm
