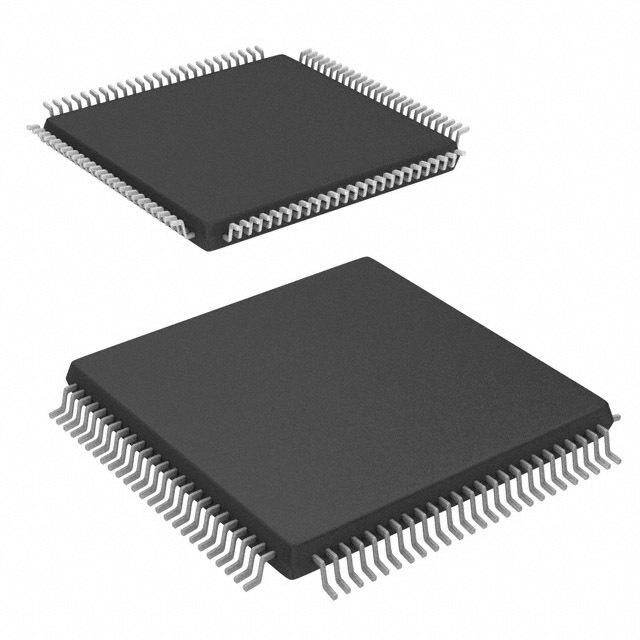

EPM7128STC100-6F
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 4.75V 3.3/55V 6ns
PDF
/
Inventory: 1851
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 14mm
Length 14mm
Height Seated (Max) 1.27mm
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 128
Output Function MACROCELL
Number of Logic Blocks (LABs) 8
Number of Gates 2500
Programmable Logic Type EE PLD
Propagation Delay 6 ns
Clock Frequency 166.7MHz
Number of I/O 84
Supply Voltage-Min (Vsup) 4.75V
Temperature Grade COMMERCIAL
Power Supplies 3.3/55V
Supply Voltage-Max (Vsup) 5.25V
Qualification Status Not Qualified
JESD-30 Code S-PQFP-G100
Pin Count 100
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Programmable Logic Devices
Additional Feature YES
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
JESD-609 Code e0
Published 1998
Packaging Bulk
Physical
Package / Case TQFP
Mount Surface Mount
