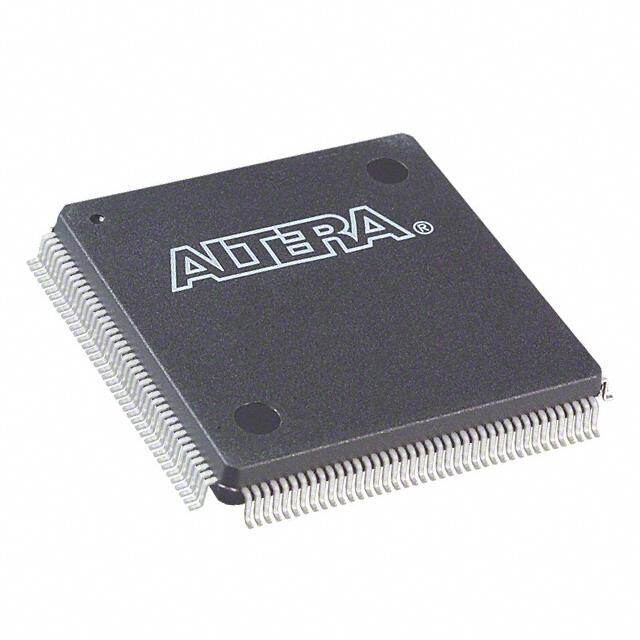

EPM7128SQC160-7F
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Surface Mount COMMERCIAL Not Qualified CPLD 70C 5V 3.3/55V 7.5ns
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5561
≥1 USD $1.5561
≥10 USD $1.2768
≥100 USD $1.2369
≥500 USD $1.197
≥1000 USD $1.1571
Inventory: 1933
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case PQFP
Number of Pins 160
Technical
Packaging Bulk
Published 1998
JESD-609 Code e0
Moisture Sensitivity Level (MSL) 3
Number of Terminations 160
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Supply Voltage 5V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 160
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.25V
Power Supplies 3.3/55V
Temperature Grade COMMERCIAL
Supply Voltage-Min (Vsup) 4.75V
Number of I/O 100
Clock Frequency 166.7MHz
Propagation Delay 7.5 ns
Programmable Logic Type EE PLD
Number of Gates 2500
Number of Logic Blocks (LABs) 8
Output Function MACROCELL
Number of Macro Cells 128
JTAG BST YES
In-System Programmable YES
Dimensions
Height Seated (Max) 4.07mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
