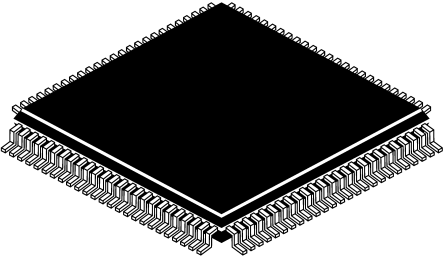

EPM7128AETC100-7N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Surface Mount COMMERCIAL CMOS CPLD 0C 3.3V 7.5ns 14mm
PDF
/
Buying Options
Total Price: USD $79.4
Unit Price: USD $79.40385
≥1 USD $79.40385
≥10 USD $76.92245
≥100 USD $74.44105
≥500 USD $71.95965
≥1000 USD $64.51545
Inventory: 245
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 100
Technical
Published 1998
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
Number of Terminations 100
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 129.9MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 100
Operating Supply Voltage 3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Number of I/O 84
Memory Type EEPROM
Propagation Delay 7.5 ns
Turn On Delay Time 7.5 ns
Frequency (Max) 192.3MHz
Programmable Logic Type EE PLD
Number of Gates 2500
Number of Programmable I/O 84
Number of Logic Blocks (LABs) 8
Speed Grade 7
Output Function MACROCELL
Number of Macro Cells 128
JTAG BST YES
In-System Programmable YES
Dimensions
Height 1mm
Length 14mm
Width 14mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
