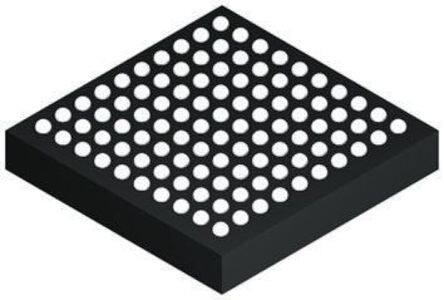

EPM7128AEFC100-7N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Surface Mount COMMERCIAL Not Qualified CPLD 70C 3.6V 7.5ns 11mm
PDF
/
Buying Options
Total Price: USD $77.1
Unit Price: USD $77.102
≥1 USD $77.102
≥10 USD $74.6928
≥100 USD $72.28265
≥500 USD $69.87345
≥1000 USD $62.6449
Inventory: 2010
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 11mm
Length 11mm
Height 1.1mm
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 128
Output Function MACROCELL
Speed Grade 7
Number of Logic Blocks (LABs) 8
Number of Programmable I/O 84
Number of Gates 2500
Programmable Logic Type EE PLD
Frequency (Max) 192.3MHz
Turn On Delay Time 7.5 ns
Propagation Delay 7.5 ns
Memory Type EEPROM
Number of I/O 84
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Temperature Grade COMMERCIAL
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Pin Count 100
Time@Peak Reflow Temperature-Max (s) 40
Frequency 166.67MHz
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Programmable Logic Devices
Additional Feature YES
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A991
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e1
Published 1998
Physical
Number of Pins 100
Package / Case FBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
