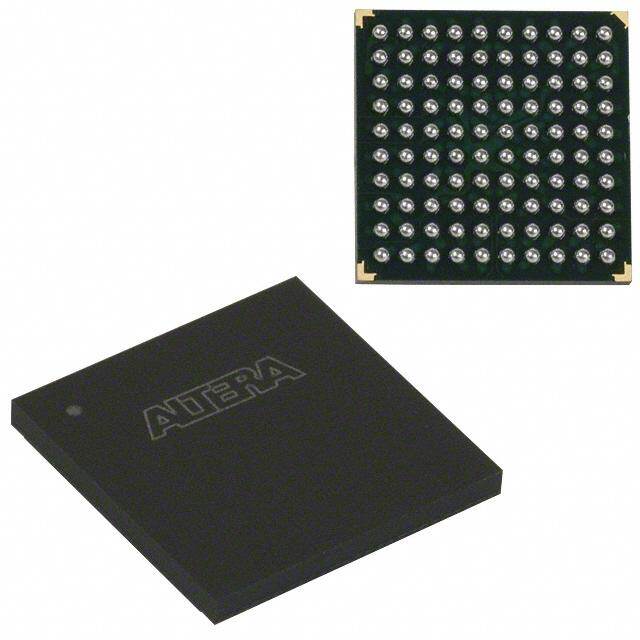

EPM7128AEFC100-10N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Surface Mount COMMERCIAL CMOS CPLD 70C 3.6V 10ns 11mm
PDF
/
Buying Options
Total Price: USD $2.65
Unit Price: USD $2.6543
≥1 USD $2.6543
≥10 USD $2.1774
≥100 USD $2.10995
≥500 USD $2.04155
≥1000 USD $1.97315
Inventory: 1294
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 11mm
Length 11mm
Height Seated (Max) 1.7mm
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 128
Output Function MACROCELL
Speed Grade 10
Number of Logic Blocks (LABs) 8
Number of Gates 2500
Programmable Logic Type EE PLD
Frequency (Max) 192.3MHz
Turn On Delay Time 10 ns
Propagation Delay 10 ns
Memory Type EEPROM
Number of I/O 84
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Temperature Grade COMMERCIAL
Operating Supply Voltage 3.3V
Pin Count 100
Time@Peak Reflow Temperature-Max (s) 40
Frequency 125MHz
Terminal Pitch 1mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Programmable Logic Devices
Additional Feature YES
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A991
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e1
Published 1998
Physical
Number of Pins 100
Package / Case FBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
