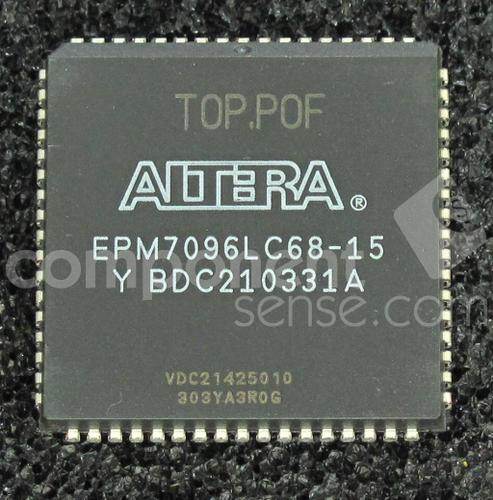

EPM7096LC68-15
RoHS
/
Package PLCC
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5.25V 15ns 5.08mm
PDF
/
Buying Options
Total Price: USD $27.4
Unit Price: USD $27.401
≥1 USD $27.401
≥10 USD $25.85
≥100 USD $24.38679
≥500 USD $23.00641
Inventory: 667
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
In-System Programmable NO
JTAG BST NO
Number of Macro Cells 96
Output Function MACROCELL
Number of Logic Blocks (LABs) 6
Number of Programmable I/O 52
Number of Gates 1800
Programmable Logic Type EE PLD
Frequency (Max) 125MHz
Propagation Delay 15 ns
Memory Type EEPROM
Number of I/O 52
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 68
Time@Peak Reflow Temperature-Max (s) 30
Frequency 100MHz
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
Subcategory Programmable Logic Devices
HTS Code 8542.39.00.01
Additional Feature CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 68
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 1998
Physical
Number of Pins 68
Package / Case PLCC
Mount Surface Mount
