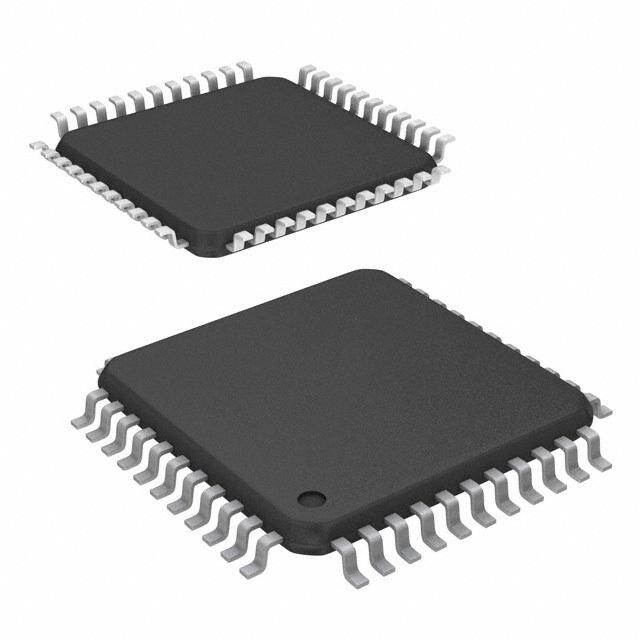

EPM7032STI44-7N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount INDUSTRIAL CPLD 85C 5.5V 5V 7.5ns
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6916
≥1 USD $0.6916
≥10 USD $0.5681
≥100 USD $0.55005
≥500 USD $0.532
≥1000 USD $0.5149
≥3000 USD $0.4617
Inventory: 7457
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 44
Technical
Published 1998
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 44
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Terminal Pitch 0.8mm
Frequency 166.7MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 44
Qualification Status Not Qualified
Operating Supply Voltage 5V
Power Supplies 5V
Temperature Grade INDUSTRIAL
Voltage 5V
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Number of I/O 36
Memory Type EEPROM
Propagation Delay 7.5 ns
Programmable Logic Type EE PLD
Number of Gates 600
Number of Logic Blocks (LABs) 2
Output Function MACROCELL
Number of Macro Cells 32
JTAG BST YES
In-System Programmable YES
Dimensions
Length 10mm
Width 10mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
