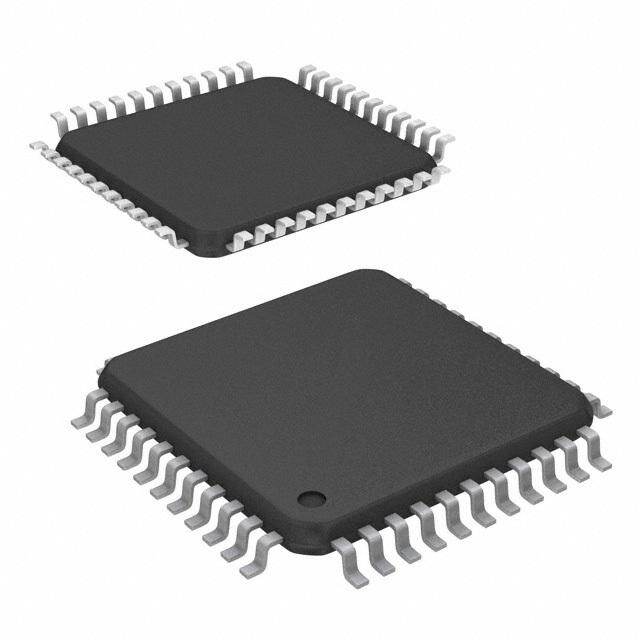

EPM7032STC44-7N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 5.25V 5V 7.5ns
PDF
/
Buying Options
Total Price: USD $26.4
Unit Price: USD $26.39955
≥1 USD $26.39955
≥10 USD $21.66095
≥100 USD $20.9836
≥500 USD $20.3072
≥1000 USD $19.62985
Inventory: 8007
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 44
Technical
Published 1998
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 44
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Terminal Pitch 0.8mm
Frequency 175.4MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 44
Qualification Status Not Qualified
Operating Supply Voltage 5V
Power Supplies 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Number of I/O 36
Memory Type EEPROM
Propagation Delay 7.5 ns
Turn On Delay Time 7.5 ns
Programmable Logic Type EE PLD
Number of Gates 600
Number of Logic Blocks (LABs) 2
Output Function MACROCELL
Number of Macro Cells 32
JTAG BST YES
In-System Programmable YES
Dimensions
Length 10mm
Width 10mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
