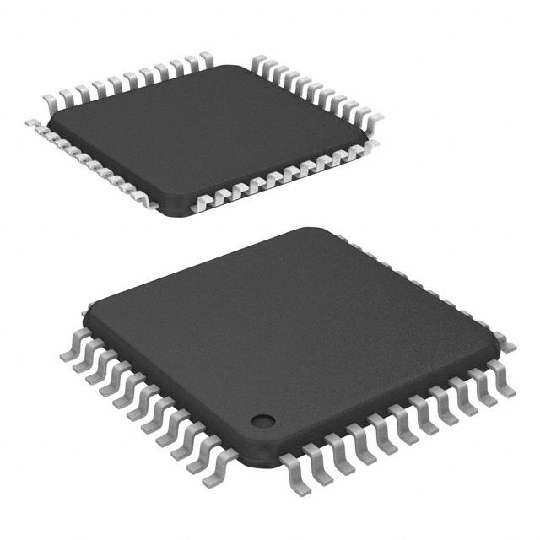

EPM7032BTC44-7N image
Favorite
EPM7032BTC44-7N image
Favorite

EPM7032BTC44-7N

Altera
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 2.5V 3.5ns 10mm
PDF
/
Inventory: 4190
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Terminal Finish Matte Tin (Sn)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 2.5V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 44
Qualification Status Not Qualified
Temperature Grade COMMERCIAL
Number of I/O 36
Clock Frequency 303MHz
Propagation Delay 3.5 ns
Programmable Logic Type EE PLD
Number of Gates 600
Number of Logic Blocks (LABs) 2
Output Function MACROCELL
Number of Macro Cells 32
JTAG BST YES
In-System Programmable YES
ECCN Code EAR99
Number of Terminations 44
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
JESD-609 Code e3
Published 1998

Dimensions

Length 10mm
Width 10mm

Compliance

RoHS Status RoHS Compliant

Physical

Number of Pins 44
Package / Case TQFP
Mount Surface Mount
