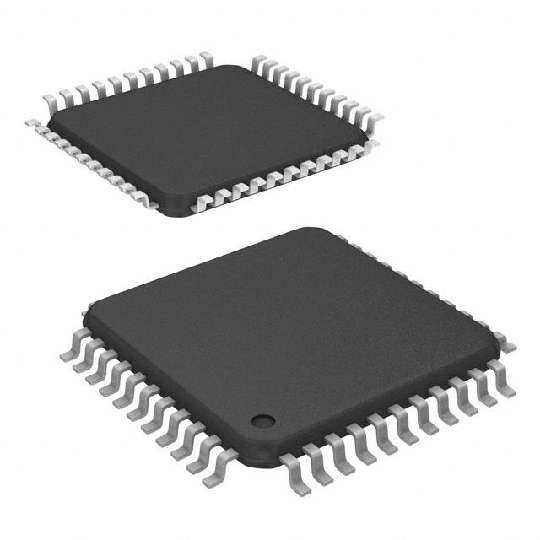

EPM7032BTC44-5
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Discontinued Surface Mount COMMERCIAL CPLD 70C 2.625V 5ns 10mm
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.5928
≥1 USD $1.5928
Inventory: 8456
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 44
Technical
Published 1998
JESD-609 Code e0
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 44
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Supply Voltage 2.5V
Terminal Pitch 0.8mm
Frequency 250MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 44
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Temperature Grade COMMERCIAL
Max Supply Voltage 2.625V
Min Supply Voltage 2.375V
Number of I/O 36
Memory Type EEPROM
Propagation Delay 5 ns
Programmable Logic Type EE PLD
Number of Gates 600
Number of Logic Blocks (LABs) 2
Output Function MACROCELL
Number of Macro Cells 32
JTAG BST YES
In-System Programmable YES
Dimensions
Length 10mm
Width 10mm
Compliance
RoHS Status RoHS Compliant
