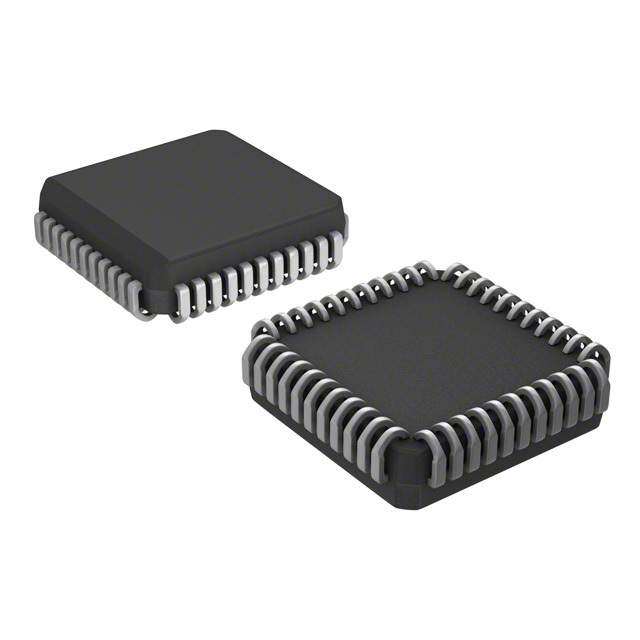

EPM7032AELC44-4N
RoHS
/
Package PLCC
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Surface Mount COMMERCIAL CMOS CPLD 70C 3.6V 4.5ns 250MHz
PDF
/
Buying Options
Total Price: USD $5.26
Unit Price: USD $5.259477
≥1 USD $5.259477
≥200 USD $2.034995
≥500 USD $1.964098
≥1000 USD $1.92865
Inventory: 1540
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 32
Output Function MACROCELL
Speed Grade 4
Number of Logic Blocks (LABs) 2
Number of Programmable I/O 36
Number of Gates 600
Programmable Logic Type EE PLD
Frequency (Max) 227.3MHz
Turn On Delay Time 4.5 ns
Propagation Delay 4.5 ns
Memory Type EEPROM
Number of I/O 36
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Temperature Grade COMMERCIAL
Operating Supply Voltage 3.3V
Pin Count 44
Time@Peak Reflow Temperature-Max (s) 40
Frequency 250MHz
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 245
Terminal Form J BEND
Terminal Position QUAD
Technology CMOS
Subcategory Programmable Logic Devices
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 44
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e3
Published 1998
Physical
Number of Pins 44
Package / Case PLCC
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
