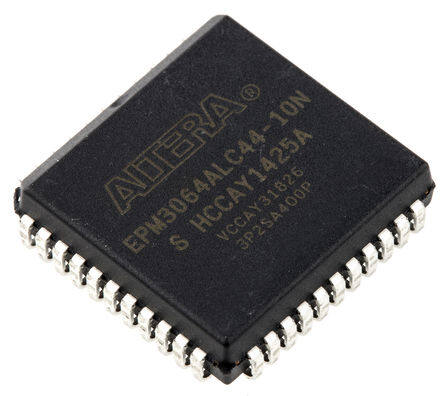

EPM3064ALC44-10N
RoHS
/
Package PLCC
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Active Surface Mount COMMERCIAL CPLD 70C 3.6V 10ns 16.59mm
PDF
/
Buying Options
Total Price: USD $6.29
Unit Price: USD $6.29216
≥1 USD $6.29216
≥10 USD $5.936
≥100 USD $5.6
≥500 USD $5.28302
≥1000 USD $4.98398
≥3000 USD $4.70187
Inventory: 2836
Minimum: 1
-
+
Technical Details
Physical
Package / Case PLCC
Number of Pins 44
Mount Surface Mount
Technical
Published 1998
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 44
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form J BEND
Peak Reflow Temperature (Cel) 245
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Frequency 222.2MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 44
Operating Supply Voltage 3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Number of I/O 34
Memory Type EEPROM
Propagation Delay 10 ns
Turn On Delay Time 10 ns
Frequency (Max) 222.2MHz
Programmable Logic Type EE PLD
Number of Gates 1250
Number of Programmable I/O 34
Number of Logic Blocks (LABs) 4
Speed Grade 10
Output Function MACROCELL
Number of Macro Cells 64
JTAG BST YES
In-System Programmable YES
Dimensions
Height 3.81mm
Length 16.59mm
Width 16.59mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Supply Chain
Factory Lead Time 10 Weeks
