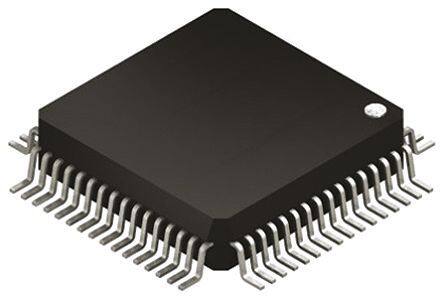

5M80ZE64C4N
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Active Surface Mount OTHER CPLD 85C 1kB 1.89V 7.9ns
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.75915
≥1 USD $3.75915
≥10 USD $3.08465
≥100 USD $2.98775
≥500 USD $2.8918
≥1000 USD $2.79585
Inventory: 503
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7mm
Length 7mm
Height 1.05mm
Technical
In-System Programmable YES
JTAG BST YES
Number of Macro Cells 64
Output Function MACROCELL
Number of Logic Blocks (LABs) 8
Number of Programmable I/O 54
Number of Logic Elements/Cells 80
Frequency (Max) 152MHz
Propagation Delay 7.9 ns
Memory Type FLASH
Nominal Supply Current 25μA
Number of I/O 54
Operating Supply Current 25μA
Memory Size 1kB
Min Supply Voltage 1.71V
Max Supply Voltage 1.89V
Temperature Grade OTHER
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Pin Count 64
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.4mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Programmable Logic Devices
Additional Feature YES
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 64
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2003
Physical
Number of Pins 64
Package / Case QFP
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
