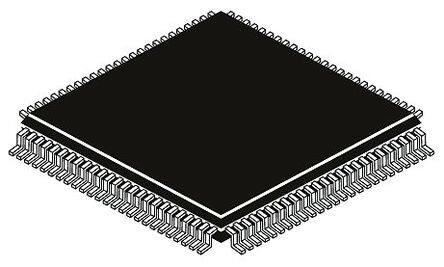

5M570ZT100C4N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Active Surface Mount OTHER CPLD 85C 1kB 1.89V 9ns
PDF
/
Buying Options
Total Price: USD $127.61
Unit Price: USD $127.61255
≥1 USD $127.61255
≥10 USD $123.35845
≥100 USD $110.5971
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 100
Technical
Published 2003
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Number of Terminations 100
ECCN Code EAR99
Terminal Finish MATTE TIN
Max Operating Temperature 85°C
Min Operating Temperature 0°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Frequency 184.1MHz
Pin Count 100
Operating Supply Voltage 1.8V
Temperature Grade OTHER
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 1kB
Operating Supply Current 27μA
Number of I/O 74
Nominal Supply Current 27μA
Memory Type FLASH
Propagation Delay 9 ns
Frequency (Max) 152MHz
Number of Logic Elements/Cells 570
Number of Programmable I/O 74
Number of Logic Blocks (LABs) 8
Speed Grade 4
Output Function MACROCELL
Number of Macro Cells 440
JTAG BST YES
In-System Programmable YES
Dimensions
Height Seated (Max) 1.2mm
Length 16mm
Width 16mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
