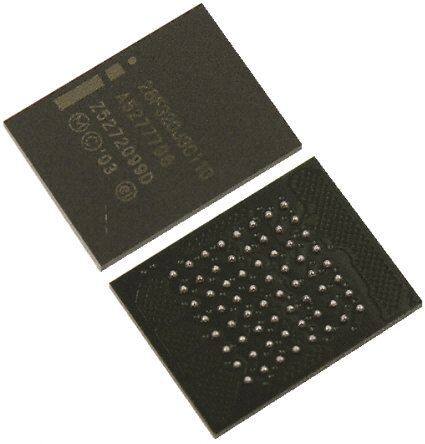

5M40ZM64C5N
RoHS
/
Package TFBGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Active Surface Mount OTHER CPLD 85C 1kB 1.89V 14ns
PDF
/
Buying Options
Total Price: USD $87.91
Unit Price: USD $87.9111
≥1 USD $87.9111
≥10 USD $85.07535
≥100 USD $82.2396
≥500 USD $73.7314
Inventory: 1807
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Package / Case TFBGA
Number of Pins 64
Technical
Published 2003
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Number of Terminations 64
ECCN Code EAR99
Terminal Finish TIN SILVER COPPER
Max Operating Temperature 85°C
Min Operating Temperature 0°C
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.8V
Frequency 1.4749GHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 64
Operating Supply Voltage 1.8V
Temperature Grade OTHER
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 1kB
Operating Supply Current 25μA
Number of I/O 30
Nominal Supply Current 25μA
Memory Type FLASH
Propagation Delay 14 ns
Frequency (Max) 152MHz
Number of Logic Elements/Cells 40
Number of Programmable I/O 30
Number of Logic Blocks (LABs) 8
Speed Grade 5
Output Function MACROCELL
Number of Macro Cells 32
Dimensions
Height 1.05mm
Length 4.5mm
Width 4.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
