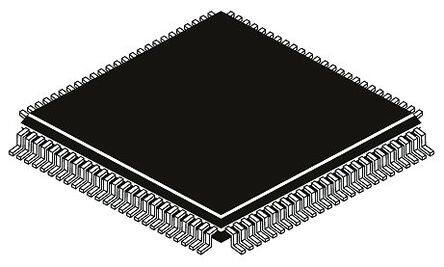

5M240ZT100C4N image
Favorite
5M240ZT100C4N image
Favorite

5M240ZT100C4N

Altera
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description MACROCELL Active Surface Mount OTHER CPLD 85C 1kB 1.89V 1.81.2/3.3V
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 6113
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 16mm
Length 16mm
Height Seated (Max) 1.2mm

Technical

In-System Programmable YES
JTAG BST YES
Number of Macro Cells 192
Output Function MACROCELL
Speed Grade 4
Number of Logic Blocks (LABs) 240
Number of Programmable I/O 79
Frequency (Max) 152MHz
Propagation Delay 7.9 ns
Memory Type FLASH
Nominal Supply Current 25μA
Number of I/O 79
Operating Supply Current 25μA
Memory Size 1kB
Min Supply Voltage 1.71V
Max Supply Voltage 1.89V
Temperature Grade OTHER
Power Supplies 1.81.2/3.3V
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Pin Count 100
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Programmable Logic Devices
Additional Feature YES
Min Operating Temperature 0°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 100
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2003

Physical

Number of Pins 100
Package / Case TQFP
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
