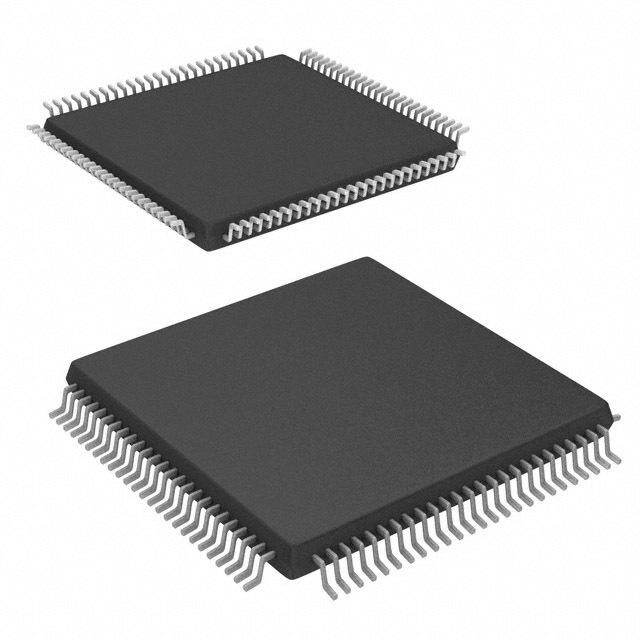

5M160ZT100I5N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
MACROCELL Active Surface Mount INDUSTRIAL CPLD 100C 1kB 1.89V 14ns
PDF
/
Buying Options
Total Price: USD $18.79
Unit Price: USD $18.79385
≥1 USD $18.79385
≥10 USD $15.4204
≥100 USD $14.93875
≥500 USD $14.4571
≥1000 USD $13.97545
≥3000 USD $12.52955
Inventory: 9232
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 100
Technical
Published 2003
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Number of Terminations 100
ECCN Code EAR99
Terminal Finish Matte Tin/Copper (Sn/Cu)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Additional Feature YES
Subcategory Programmable Logic Devices
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Supply Voltage 1.8V
Frequency 1.4749GHz
Pin Count 100
Operating Supply Voltage 1.8V
Temperature Grade INDUSTRIAL
Max Supply Voltage 1.89V
Min Supply Voltage 1.71V
Memory Size 1kB
Operating Supply Current 25μA
Number of I/O 79
Nominal Supply Current 25μA
Memory Type FLASH
Propagation Delay 14 ns
Frequency (Max) 152MHz
Number of Logic Elements/Cells 160
Number of Programmable I/O 79
Number of Logic Blocks (LABs) 8
Speed Grade 5
Output Function MACROCELL
Number of Macro Cells 128
JTAG BST YES
In-System Programmable YES
Dimensions
Height Seated (Max) 1.2mm
Length 14mm
Width 14mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
