RoHS
RoHS compliant
RoHS compliantPackage Blade Type, Module
Category Circuit Protection / Electrical, Specialty Fuses
Description

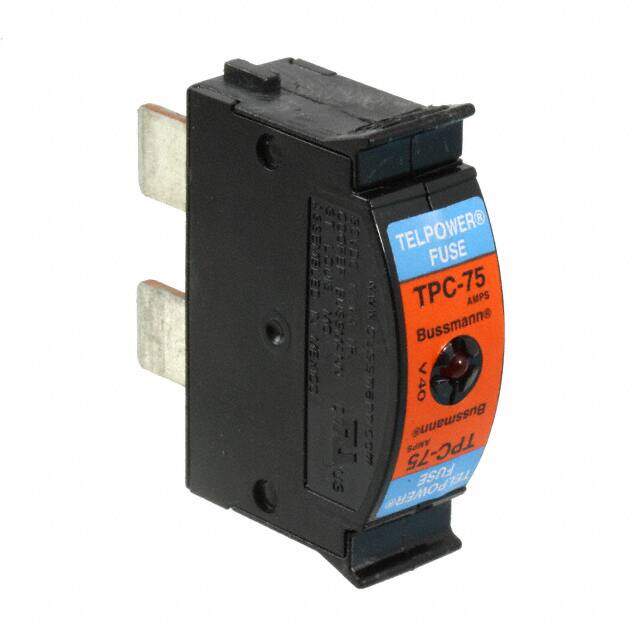

Fuse 75A 80V DIN Rail Wire 46.89 X 13.89 X 46.33mm
PDF
/
Inventory: 9012
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 13.8938mm
Length 46.8884mm
Height 46.3296mm
Technical
Breaking Capacity @ Rated Voltage 100kA
Fuse Type Rectangular
Max Voltage Rating (DC) 80V
Current 75A
Approval Agency CE, UR
Current Rating 75A
Depth 13.89mm
Current Rating (Amps) 75A
Voltage - Rated DC 80V
Applications Telecom
Type Electrical
Termination Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Indicating
Size / Dimension 1.846Lx0.547W x 1.824 H 46.89mmx13.89mmx46.34mm
Series Telpower? TPC
Packaging Bulk
Physical
Weight 28.349523g
Number of Pins 2
Package / Case Blade Type, Module
Mounting Type Holder
Mount DIN Rail, Holder
Supply Chain
Factory Lead Time 9 Weeks
