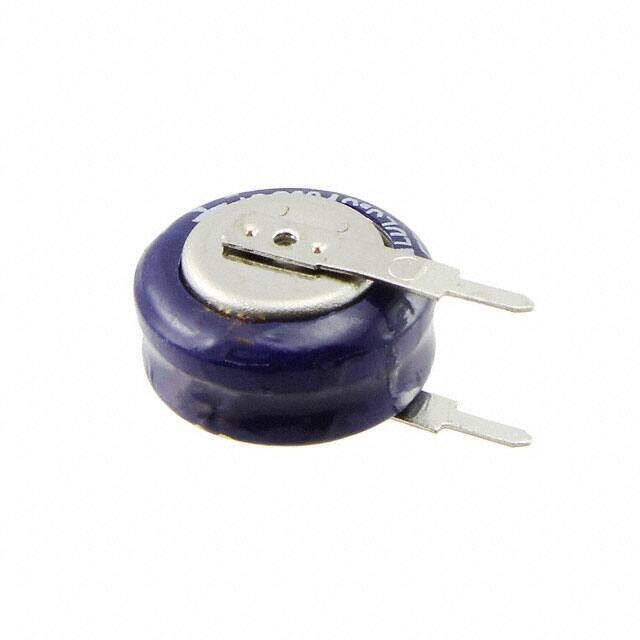

EEC-SE0H223 image
Favorite
EEC-SE0H223 image
Favorite
RoHS
/
Package Axial, Can - Vertical
Category Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Description Axial Can - Vertical ELECTRIC DOUBLE LAYER CAPACITOR SE 5.5V 22mF -20% +80% 0.213Dia 5.40mm
PDF
/
Inventory: 4116
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Axial, Can - Vertical
Terminal Shape WIRE
Dielectric Material Aluminium

Technical

Operating Temperature -25°C~70°C
Packaging Tape & Box (TB)
Published 2010
Series SE
Size / Dimension 0.213Dia 5.40mm
Tolerance -20% +80%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature CAPACITANCE RANGE IS 0.0176F TO 0.396F
HTS Code 8532.29.00.40
Capacitance 22mF
Voltage - Rated DC 5.5V
Packing Method Ammo Pack
Lead Pitch 5mm
Capacitor Type ELECTRIC DOUBLE LAYER CAPACITOR
Lead Length 18mm
ESR (Equivalent Series Resistance) 150Ohm @ 1kHz
Lead Spacing 0.197 5.00mm
Lead Diameter 550 μm
Size Code 2141
Voltage 5.5V
Lifetime @ Temp 1000 Hrs @ 70°C
Life (Hours) 1000 hours

Dimensions

Diameter 10.5mm
Height Seated (Max) 0.528 13.40mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
