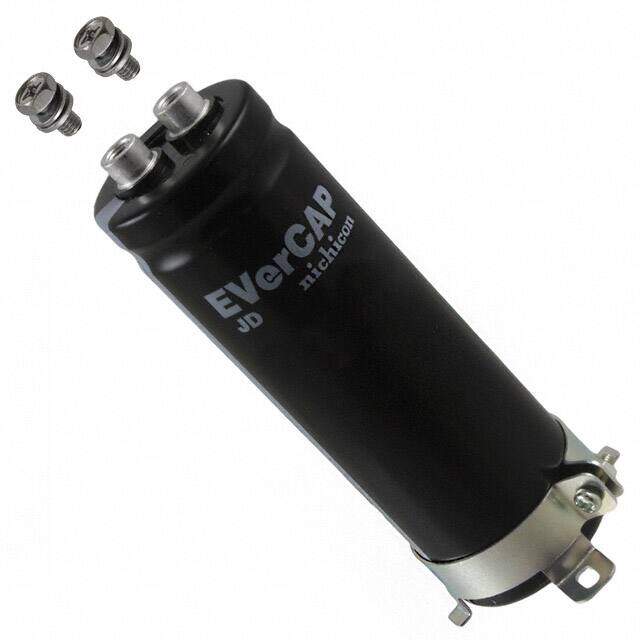

JJD0E807MSECBN
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Screw Terminals
Category Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Description
Radial Can - Screw Terminals ELECTRIC DOUBLE LAYER CAPACITOR EVerCAP? JJD 2.5V 800F ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 5002
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Terminal Shape BINDING POST
Technical
Operating Temperature -25°C~60°C
Packaging Bulk
Published 2008
Series EVerCAP? JJD
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw Terminals
ECCN Code 3A001.E.2
Voltage - Rated 2.5V
HTS Code 8532.22.00
Capacitance 800F
Lead Pitch 12.7mm
Capacitor Type ELECTRIC DOUBLE LAYER CAPACITOR
ESR (Equivalent Series Resistance) 13mOhm
Lead Spacing 0.500 12.70mm
Rated (DC) Voltage (URdc) 2.5V
Lifetime @ Temp 2000 Hrs @ 60°C
Leakage Current 500μA
Life (Hours) 2000 hours
Dimensions
Height Seated (Max) 4.252 108.00mm
Compliance
RoHS Status ROHS3 Compliant
