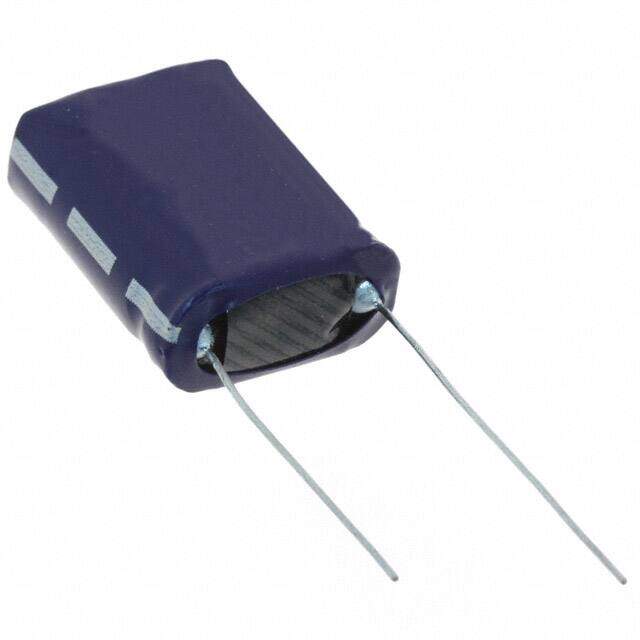

PM-5R0V155-R
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Description
Radial Can ELECTRIC DOUBLE LAYER CAPACITOR PowerStor PM 5V 1.5F -20% +80% 0.839Lx0.433W 21.30mmx11.00mm
PDF
/
Buying Options
Total Price: USD $5.63
Unit Price: USD $5.632
≥1 USD $5.632
≥10 USD $4.88136
≥100 USD $4.38064
≥500 USD $3.804944
≥1000 USD $3.441979
≥3000 USD $3.191646
Inventory: 1132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Weight 453.59237mg
Technical
Operating Temperature -40°C~60°C
Packaging Bulk
Published 2008
Series PowerStor PM
Size / Dimension 0.839Lx0.433W 21.30mmx11.00mm
Tolerance -20% +80%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Capacitance 1.5F
Voltage - Rated DC 5V
Depth 10.5mm
Lead Pitch 5.3mm
Capacitor Type ELECTRIC DOUBLE LAYER CAPACITOR
ESR (Equivalent Series Resistance) 100mOhm
Lead Spacing 0.209 5.30mm
Rated (DC) Voltage (URdc) 5V
Lead Diameter 600 μm
Size Code 8443
Lifetime @ Temp 1000 Hrs @ 60°C
Leakage Current 15μA
Life (Hours) 1000 hours
Dimensions
Height 10.5mm
Height Seated (Max) 0.906 23.00mm
Length 21.3mm
Width 11mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
