XDUR13C
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP (0.600, 15.24mm)
Category Optoelectronics / Display Modules - LED Character and Numeric
Description

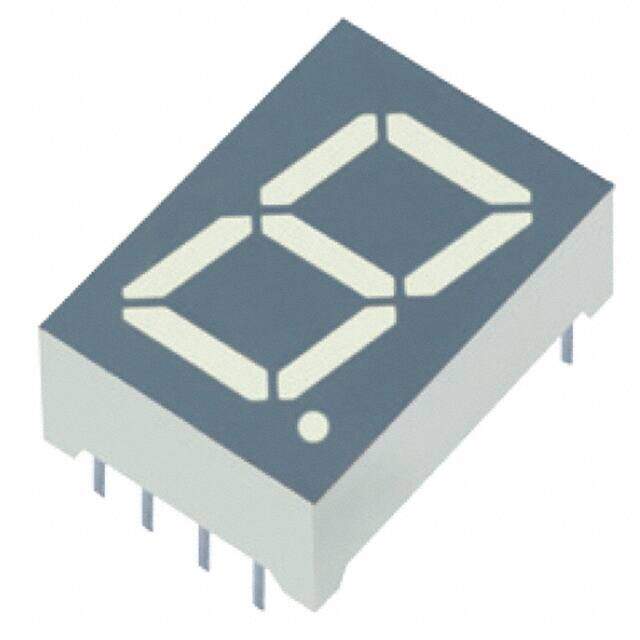

DISPLAY 13.2MM RED 1DIGIT CC
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.463884
≥1 USD $1.463884
≥200 USD $0.584241
≥480 USD $0.564547
≥1000 USD $0.555357
Inventory: 9110
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Package / Case 10-DIP (0.600, 15.24mm)
Technical
Packaging Tube
Published 2014
Size / Dimension 0.689 Hx0.488W x 0.276 D 17.50mmx12.40mmx7.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Color Red
Additional Feature IC COMPATIBLE
Number of Functions 1
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Power Dissipation-Max 75mW
Voltage - Forward (Vf) (Typ) 1.9V
Optoelectronic Device Type SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Current - Test 10mA
Luminous Intensity 2 mcd
Wavelength - Peak 627nm
Forward Current-Max 0.03A
Display Type 7-Segment
Number of Characters 1
Digit/Alpha Size 0.52 13.21mm
Common Pin Common Cathode
Dimensions
Height 17.5006mm
Compliance
RoHS Status ROHS3 Compliant
