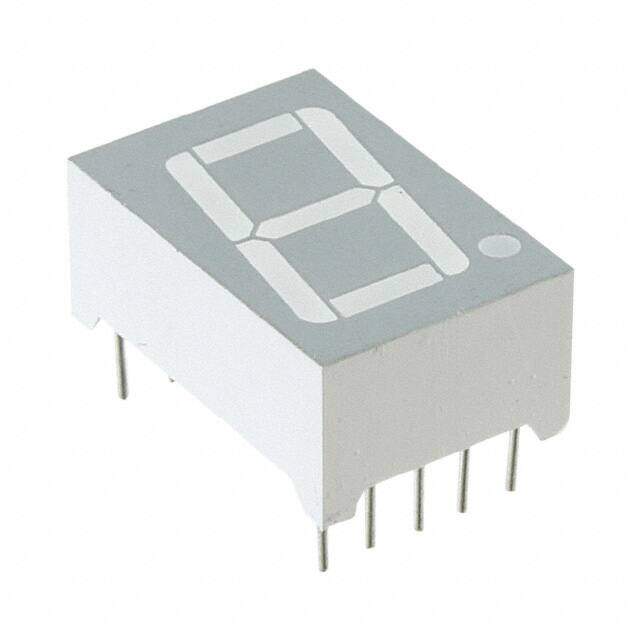

LTS-6460G
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP (0.600, 15.24mm)
Category Optoelectronics / Display Modules - LED Character and Numeric
Description
DISPLAY 1DGT GREEN 0.56" CA
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $0.97218
≥100 USD $0.7194
≥500 USD $0.661047
≥1000 USD $0.544386
≥3000 USD $0.517176
Inventory: 427
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Package / Case 10-DIP (0.600, 15.24mm)
Number of Pins 10
Technical
Packaging Tube
Published 2005
Size / Dimension 0.750 Hx0.496W x 0.315 D 19.05mmx12.60mmx8.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Pure Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -35°C
Color Green
Additional Feature HIGH RELIABILITY
Subcategory LED Displays
Number of Functions 1
Depth 12.6mm
Operating Supply Voltage 2.6V
Number of Elements 8
Element Configuration Common Anode
Power Dissipation 75mW
Voltage - Forward (Vf) (Typ) 2.1V
Forward Current 25mA
Current - Test 20mA
Luminous Intensity 2.4 mcd
Wavelength - Peak 565nm
Display Type 7-Segment
Reverse Voltage 5V
Number of Characters 1
Digit/Alpha Size 0.56 14.22mm
Common Pin Common Anode
Dominant Wavelength 569 nm
Character Width 14.224mm
Dimensions
Height 19.05mm
Viewing Area (height) 14.22mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
