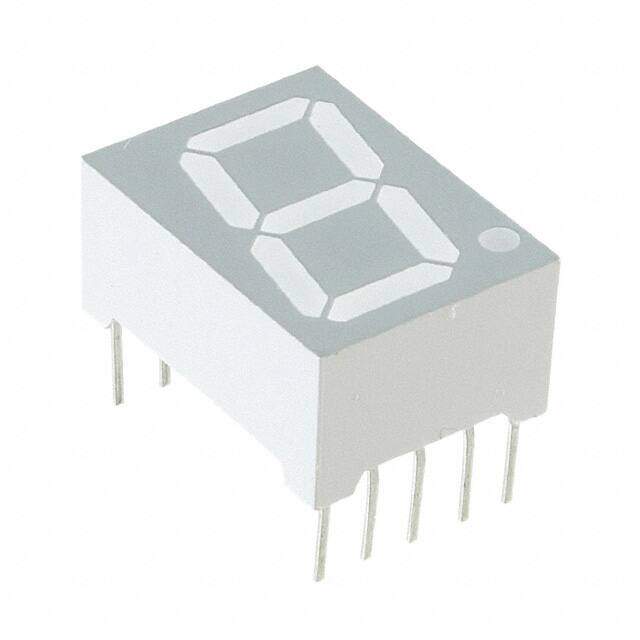

LTS-5501AE
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP (0.600, 15.24mm)
Category Optoelectronics / Display Modules - LED Character and Numeric
Description
LED 7-SEG .56" 1DGT RED-ORNG CA
PDF
/
Buying Options
Total Price: USD $1.62
Unit Price: USD $1.621432
≥1 USD $1.621432
≥200 USD $0.64726
≥480 USD $0.626253
≥1000 USD $0.61575
Inventory: 1379
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Package / Case 10-DIP (0.600, 15.24mm)
Number of Pins 10
Technical
Packaging Tube
Published 2000
Size / Dimension 0.673 Hx0.488W x 0.315 D 17.10mmx12.40mmx8.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -35°C
Color Orange-Red
Additional Feature IC COMPATIBLE
Number of Functions 1
Depth 12.4mm
Operating Supply Voltage 2.6V
Number of Elements 8
Element Configuration Common Anode
Power Dissipation 75mW
Voltage - Forward (Vf) (Typ) 2V
Forward Current 25mA
Current - Test 20mA
Luminous Intensity 2.4 mcd
Illumination Color Orange, Red
Wavelength - Peak 630nm
Display Type 7-Segment
Reverse Voltage 5V
Number of Characters 1
Digit/Alpha Size 0.56 14.22mm
Common Pin Common Anode
Dominant Wavelength 621 nm
Character Width 14.224mm
Dimensions
Height 8.128mm
Viewing Area (height) 14.22mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
