HDSP-K121
RoHS
RoHS compliant
RoHS compliantPackage 18-DIP (0.600, 15.24mm)
Category Optoelectronics / Display Modules - LED Character and Numeric
Description

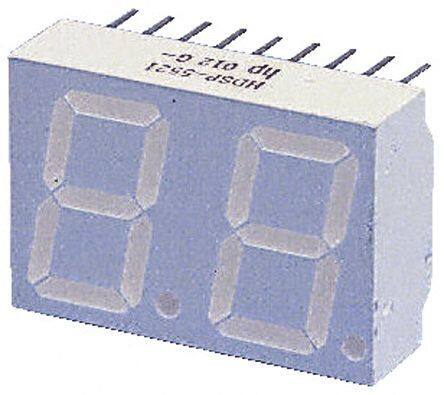

AVAGO TECHNOLOGIES HDSP-K121 7-Segment LED Display, 2, 14.22 mm, Red, Common Anode, 4.2 mcd, 20 mA
PDF
/
Buying Options
Total Price: USD $6.18
Unit Price: USD $6.1776
≥1 USD $6.1776
≥10 USD $4.4792
≥100 USD $3.701174
≥500 USD $3.24148
≥1000 USD $3.064679
≥3000 USD $2.993954
Inventory: 1172
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Package / Case 18-DIP (0.600, 15.24mm)
Number of Pins 18
Technical
Packaging Bulk
Published 2005
Size / Dimension 0.670 Hx0.990W x 0.315 D 17.02mmx25.15mmx8.00mm
JESD-609 Code e3/e1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish TIN/TIN SILVER COPPER
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Red
Number of Functions 2
Depth 17.02mm
Operating Supply Voltage 1.8V
Number of Elements 16
Element Configuration Common Anode
Power Dissipation 37mW
Voltage - Forward (Vf) (Typ) 1.7V
Forward Current 20mA
Current - Test 5mA
Luminous Intensity 4.2 mcd
Wavelength - Peak 645nm
Display Type 7-Segment
Reverse Voltage 15V
Number of Characters 2
Number of Segments 7
Digit/Alpha Size 0.56 14.22mm
Common Pin Common Anode
Dominant Wavelength 637 nm
Character Width 7.8mm
Dimensions
Height 17.018mm
Viewing Area (height) 14.22mm
Character Height 14.22mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
