LQ104V1DG81 image
Favorite
LQ104V1DG81 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Optoelectronics / Display Modules - LCD, OLED, Graphic

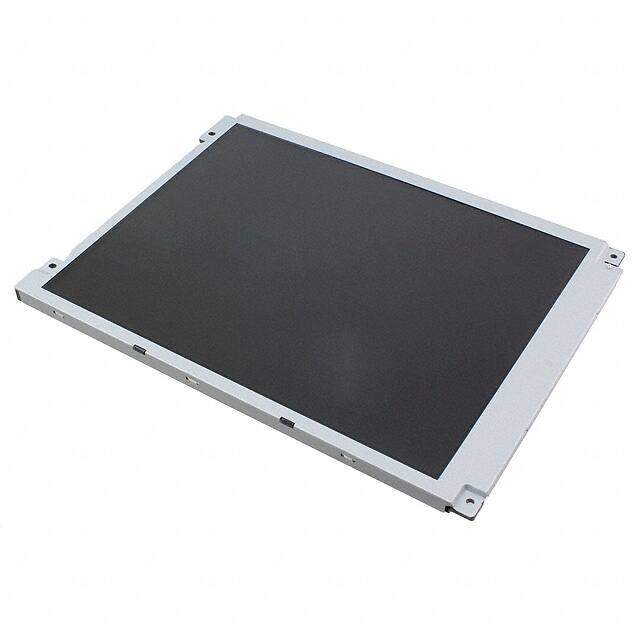

Description TFT Module Normally White 10.4in VGA 640x480Pixels
PDF
/
Buying Options
Total Price: USD $174.9
Unit Price: USD $174.9
≥1 USD $174.9
≥10 USD $165
Inventory: 112
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Package / Case Module
Weight 453.59237g

Technical

Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Interface Parallel, 18-Bit (RGB)
Display Type TFT - Color
Viewing Area 211.20mm W x 158.40mm H
Display Mode Transmissive
Backlight LED - White
Touchscreen No
Dot Pixels 640 x 480 (VGA)
Diagonal Screen Size 10.4 264.16mm
Graphics Color Red, Green, Blue (RGB)
Dot Pitch 0.33mm Wx0.33mm H
Backlight Type LED
Resolution (height) 480 pixel
Resolution (width) 640 pixel
Diagonal Size 10.4 in
Contrast Ratio 800:1
Brightness 450 cd/m^2

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
