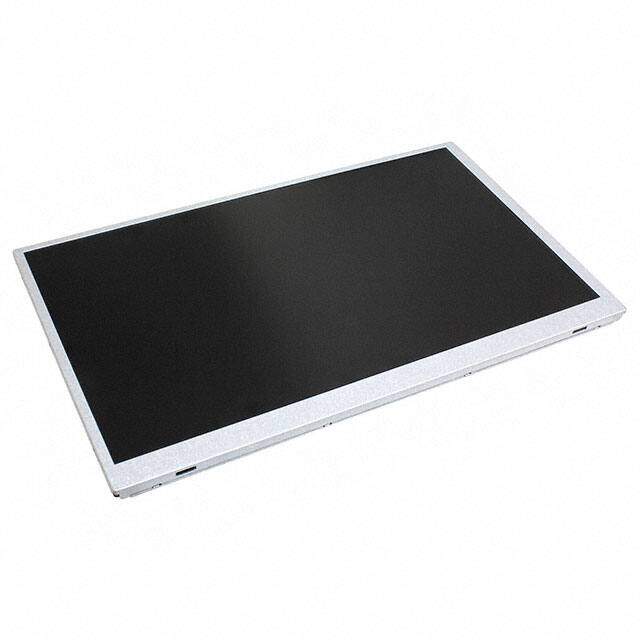

LQ090Y3DG01 image
Favorite
LQ090Y3DG01 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Optoelectronics / Display Modules - LCD, OLED, Graphic
Description TFT Displays & Accessories 9.0 WVGA 800x480 TFT w/o Touch
PDF
/
Inventory: 7116
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Technical

Diagonal Size 9 in
Resolution (width) 800 pixel
Resolution (height) 480 pixel
Backlight Type LED
Dot Pitch 0.25mm Wx0.23mm H
Graphics Color Red, Green, Blue (RGB)
Diagonal Screen Size 9 228.60mm
Background Color White
Dot Pixels 800 x 480 (WVGA)
Touchscreen No
Backlight LED - White
Display Mode Transmissive
Viewing Area 198.00mm W x 111.70mm H
Display Type TFT - Color
Interface Parallel, 24-Bit (RGB)
Operating Supply Voltage 3.3V
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2012

Physical

Package / Case Module

Supply Chain

Factory Lead Time 20 Weeks
