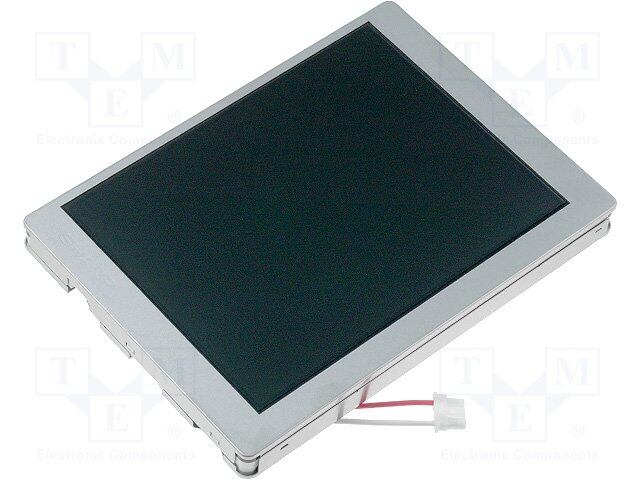

LQ057V3DG01
RoHS
/
Package Module
Category Optoelectronics / Display Modules - LCD, OLED, Graphic
Description
TFT Module Normally White 5.7in VGA 640x480Pixels 33-Pin
PDF
/
Inventory: 8465
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Brightness 400 cd/m^2
Contrast Ratio 600:1
Diagonal Size 5.7 in
Resolution (width) 640 pixel
Resolution (height) 480 pixel
Backlight Type LED
Dot Pitch 0.18mm Wx0.18mm H
Graphics Color Red, Green, Blue (RGB)
Diagonal Screen Size 5.7 144.78mm
Dot Pixels 640 x 480 (VGA)
Touchscreen No
Backlight LED - White
Display Mode Transmissive
Viewing Area 115.20mm W x 86.40mm H
Display Type TFT - Color
Interface Parallel, 18-Bit (RGB)
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2007
Physical
Number of Pins 33
Package / Case Module
