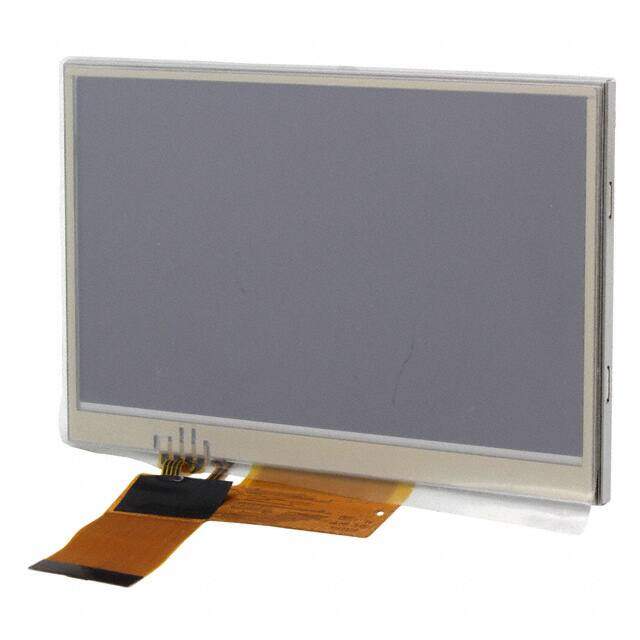

LQ043T1DG28
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Display Modules - LCD, OLED, Graphic
Description
TFT Displays & Accessories 4.3 TFT 480x272xRGB 3.3V LED Backlight
PDF
/
Inventory: 4863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Brightness 300 cd/m^2
Contrast Ratio 500:1
Diagonal Size 4.3 in
Resolution (width) 480 pixel
Resolution (height) 272 pixel
Backlight Type LED
Dot Pitch 0.20mm Wx0.20mm H
Graphics Color Red, Green, Blue (RGB)
Diagonal Screen Size 4.3 109.22mm
Dot Pixels 480 x 272
Touchscreen Resistive
Backlight LED - White
Display Mode Transmissive
Viewing Area 95.04mm W x 53.86mm H
Display Type TFT - Color
Operating Supply Current 35mA
Interface Parallel, 18-Bit (RGB)
Operating Supply Voltage 3.3V
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2012
Physical
Mount Panel
Supply Chain
Factory Lead Time 20 Weeks
