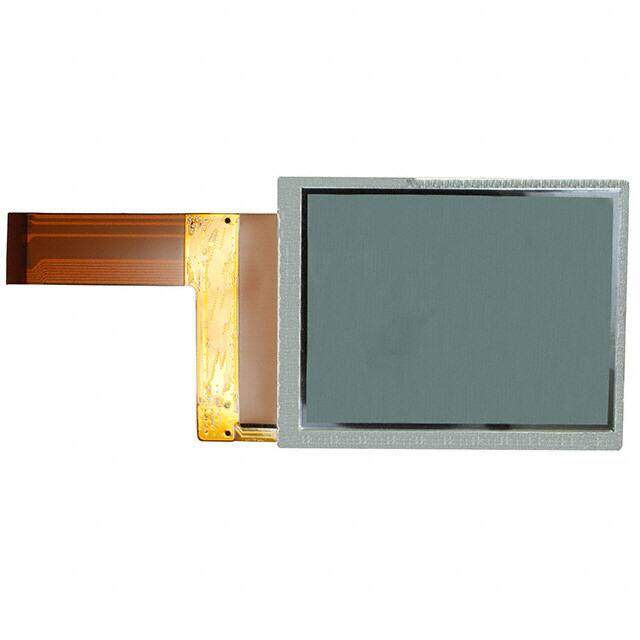

LQ038Q7DB03R image
Favorite
LQ038Q7DB03R image
Favorite
RoHS
/
Package Module
Category Optoelectronics / Display Modules - LCD, OLED, Graphic
Description LCD TFT 3.8" 240X320 QVGA
PDF
/
Inventory: 8652
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case Module
Number of Pins 20

Technical

Published 2005
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Interface Parallel, 18-Bit (RGB)
Power Consumption 486mW
Display Type TFT - Color
Viewing Area 57.60mm W x 76.80mm H
Display Mode Transmissive
Backlight LED - White
Touchscreen Resistive
Dot Pixels 240 x 320
Diagonal Screen Size 3.78 96.01mm
Graphics Color Red, Green, Blue (RGB)
Dot Pitch 0.24mm Wx0.24mm H
Backlight Type LED
Resolution (height) 320 pixel
Resolution (width) 240 pixel
Diagonal Size 3.78 in
Contrast Ratio 75:1
Brightness 90 cd/m^2

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
