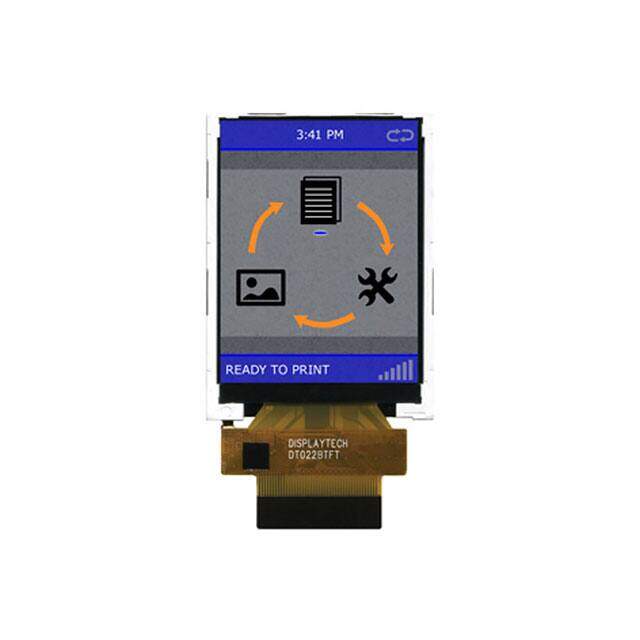

DT022BTFT
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Optoelectronics / Display Modules - LCD, OLED, Graphic
Description
Tft Lcd 2.2IN 240X320 Led Backlight
PDF
/
Buying Options
Total Price: USD $19.62
Unit Price: USD $19.62318
≥1 USD $19.62318
≥10 USD $18.51243
≥100 USD $17.46456
≥500 USD $16.476
Inventory: 762
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Package / Case Module
Technical
Published 2011
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Supply Voltage 2.8V
Depth 3.2mm
Operating Supply Voltage 2.8V
Supply Voltage-Max (Vsup) 3.3V
Interface Parallel
Optoelectronic Device Type GRAPHIC DOT MATRIX LCD DISPLAY
Response Time 20 ms
Display Type TFT - Color
Viewing Area 33.84mm W x 45.12mm H
Display Mode Transmissive
Backlight LED
Touchscreen No
Dot Pixels 240 x 320
Diagonal Screen Size 2.2 55.88mm
Graphics Color Red, Green, Blue (RGB)
Resolution (height) 320 pixel
Resolution (width) 240 pixel
Diagonal Size 2.2 in
Contrast Ratio 350:1
Brightness 200 cd/m^2
Viewing Area (width) 33.84mm
Pixel Format 320X240
Dimensions
Height 56.16mm
Width 41.7mm
Viewing Area (height) 45.12mm
Compliance
RoHS Status RoHS Compliant
