UOLED-128-G2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Display Modules - LCD, OLED, Graphic
Description

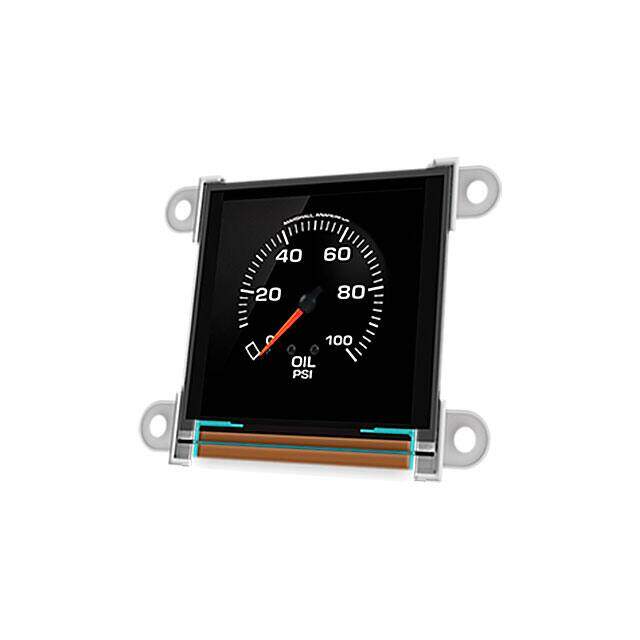

Display Modules 1.5 Smart OLED Mod w/GOLDELOX
PDF
/
Buying Options
Total Price: USD $52.76
Unit Price: USD $52.756
≥1 USD $52.756
≥10 USD $43.56
≥100 USD $41.140176
≥500 USD $39.567
Inventory: 45
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount PCB
Technical
Packaging Bulk
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Max Operating Temperature 70°C
Min Operating Temperature -30°C
Depth 13.7mm
Operating Supply Voltage 5V
Interface TTL
Operating Supply Current 40mA
Power Dissipation 1W
Viewing Angle 150 °
Display Type OLED - Passive Matrix
Viewing Area 27.00mm W x 27.00mm H
Backlight Without Backlight
Dot Pixels 128 x 128
Diagonal Screen Size 1.5 38.10mm
Graphics Color Red, Green, Blue (RGB)
Resolution (height) 128 pixel
Resolution (width) 128 pixel
Diagonal Size 1.5 in
Contrast Ratio 5000:1
Viewing Area (width) 27mm
Dimensions
Height 36mm
Length 36mm
Width 45.5mm
Viewing Area (height) 27mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
