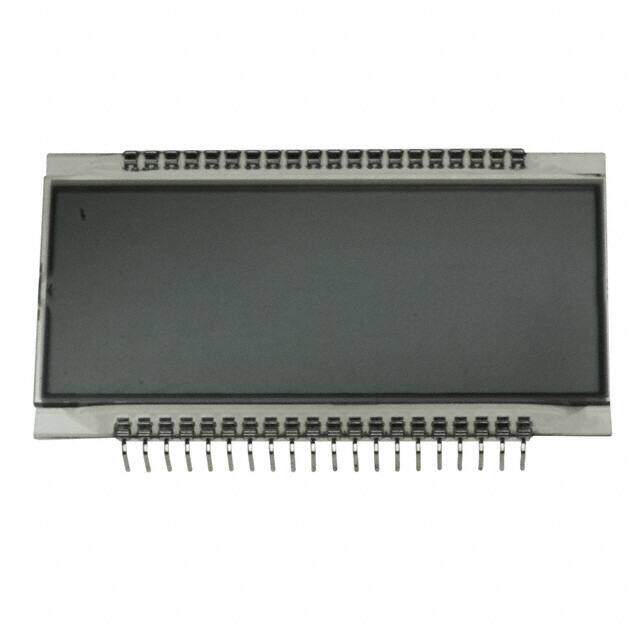

VI-415-DP-RC-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Display Modules - LCD, OLED Character and Numeric
Description
LCD MOD 4 DIG 4 X 1 REFLECTIVE
PDF
/
Buying Options
Total Price: USD $15.12
Unit Price: USD $15.119356
≥1 USD $15.119356
≥200 USD $6.032776
≥500 USD $5.831902
≥1000 USD $5.732121
Inventory: 3538
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 38.1mm
Length 69.8mm
Height 2.8mm
Technical
Character Format 7-Segment
Character Size 17.78mm Hx10.16mm W
Outline L x W x H 69.85mm x 38.10mm x 2.80mm
Display Format 4 x 1
Background Color Grey
Display Mode Reflective
Viewing Area 63.75mm L x 24.38mm W
Number of Characters 4
Display Type TN - Twisted Nematic
Operating Supply Voltage 5V
Number of Contacts 40
Voltage - Supply 3V
Min Operating Temperature -10°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series VI-415
Published 2003
Operating Temperature -10°C~60°C
Physical
Number of Pins 40
Supply Chain
Factory Lead Time 18 Weeks
