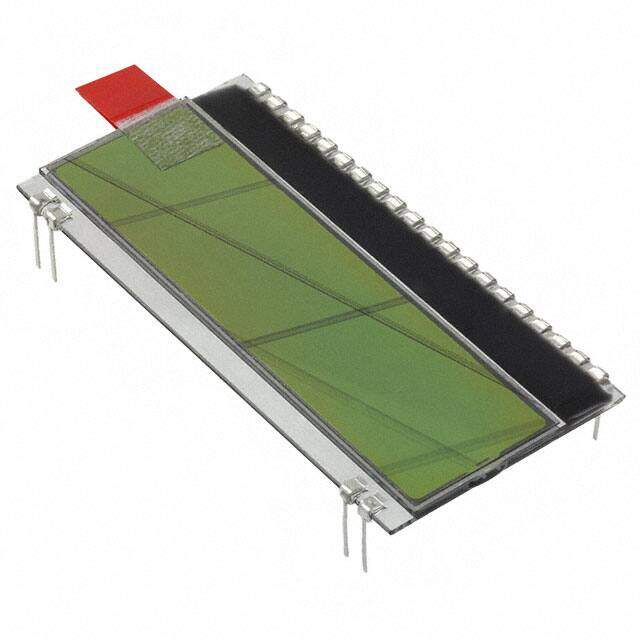

EA DOGM081E-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Display Modules - LCD, OLED Character and Numeric
Description
LCD MOD 8DIG 8 X 1 TRANSFLECTIVE
PDF
/
Buying Options
Total Price: USD $15.32
Unit Price: USD $15.3208
≥1 USD $15.3208
≥10 USD $11.55704
≥100 USD $9.707544
≥500 USD $8.915104
≥1000 USD $8.419822
Inventory: 42
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Technical
Operating Temperature -20°C~70°C
Series EA DOG
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Supply 3.3V
Interface Parallel, 8-Bit, SPI
Display Type STN - Super-Twisted Nematic
Number of Characters 8
Viewing Area 51.00mm L x 14.50mm W
Display Mode Transflective
Backlight Without Backlight
Background Color Green
Dot Size 0.97mm Wx1.47mm H
Display Format 8 x 1
Outline L x W x H 55.00mm x 27.94mm x 2.00mm
Character Size 11.97mm Hx4.97mm W
Text Color Gray
Character Format 5 x 8 Dots
Compliance
RoHS Status RoHS Compliant
